Steel Wheel Rim 14X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Model NO.
14x22.5
Diameter
≥22"
Type
Tubeless
Certification
ISO, DOT, CCC, ECE
Usage
Tractors, Harvesters, Cultivators
Tire Design
Radial Tyre
Main Market
Europe
Package
Pallets
Specification
14x22.5
HS Code
870870
Capacity
1,200,000
Origin
China
Product Description

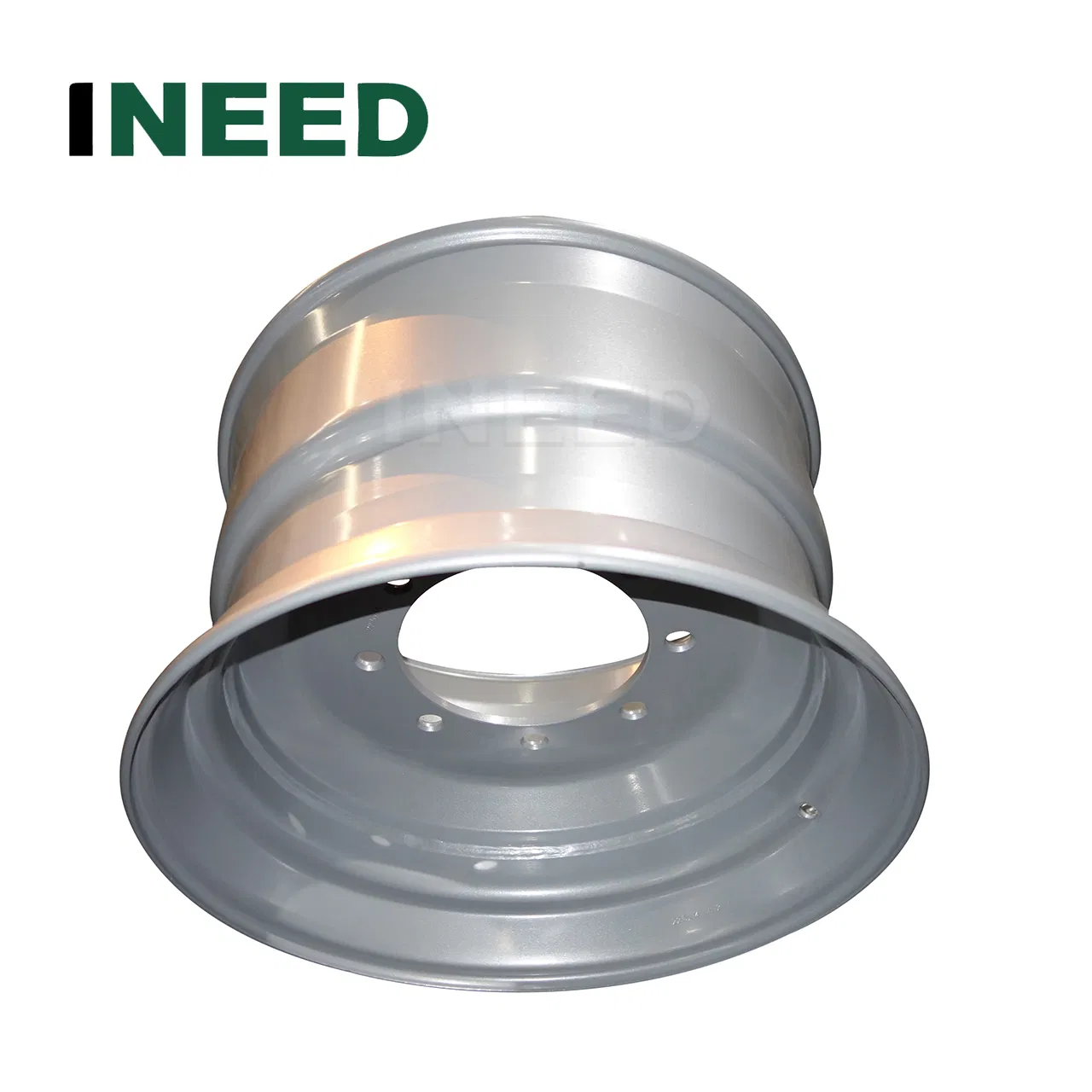

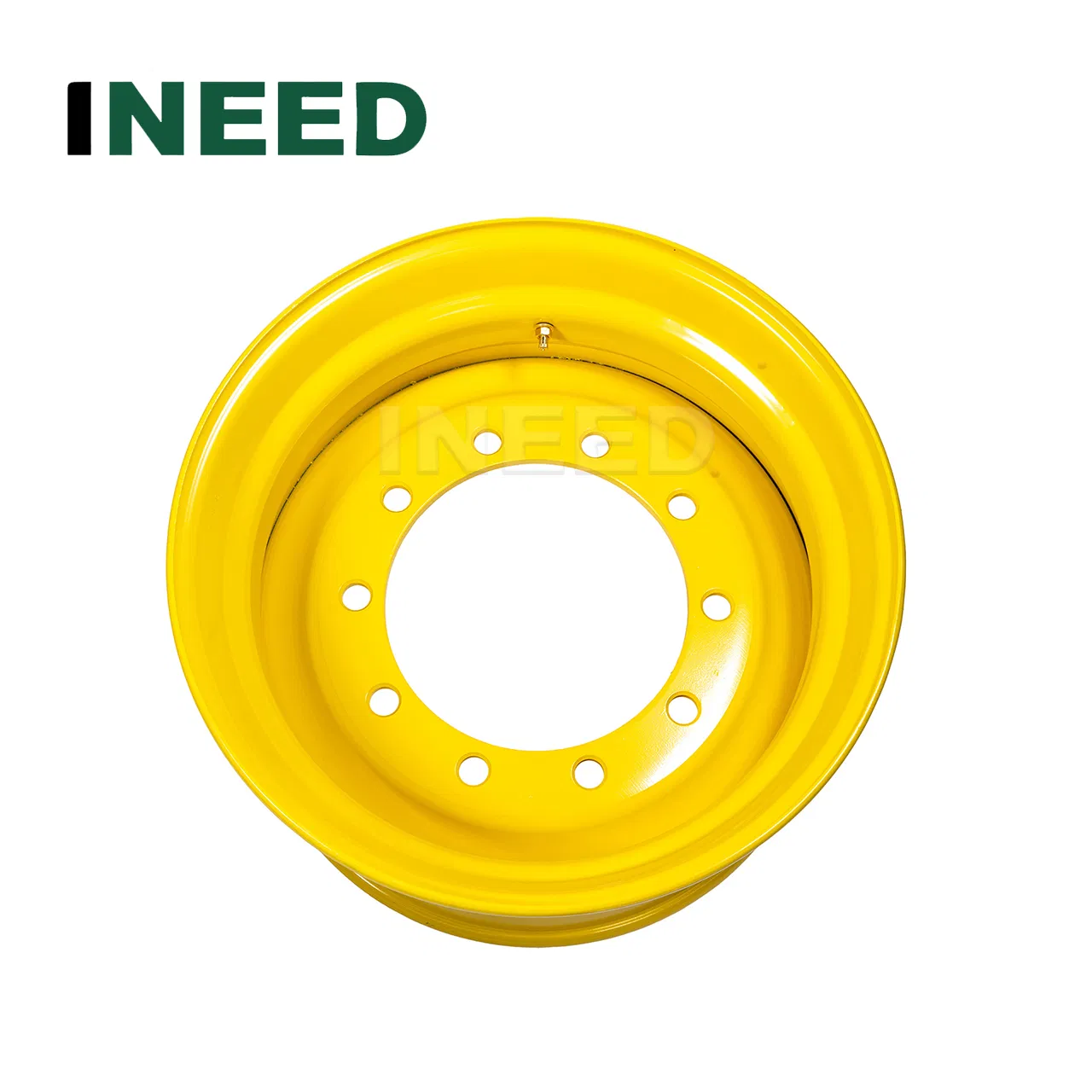

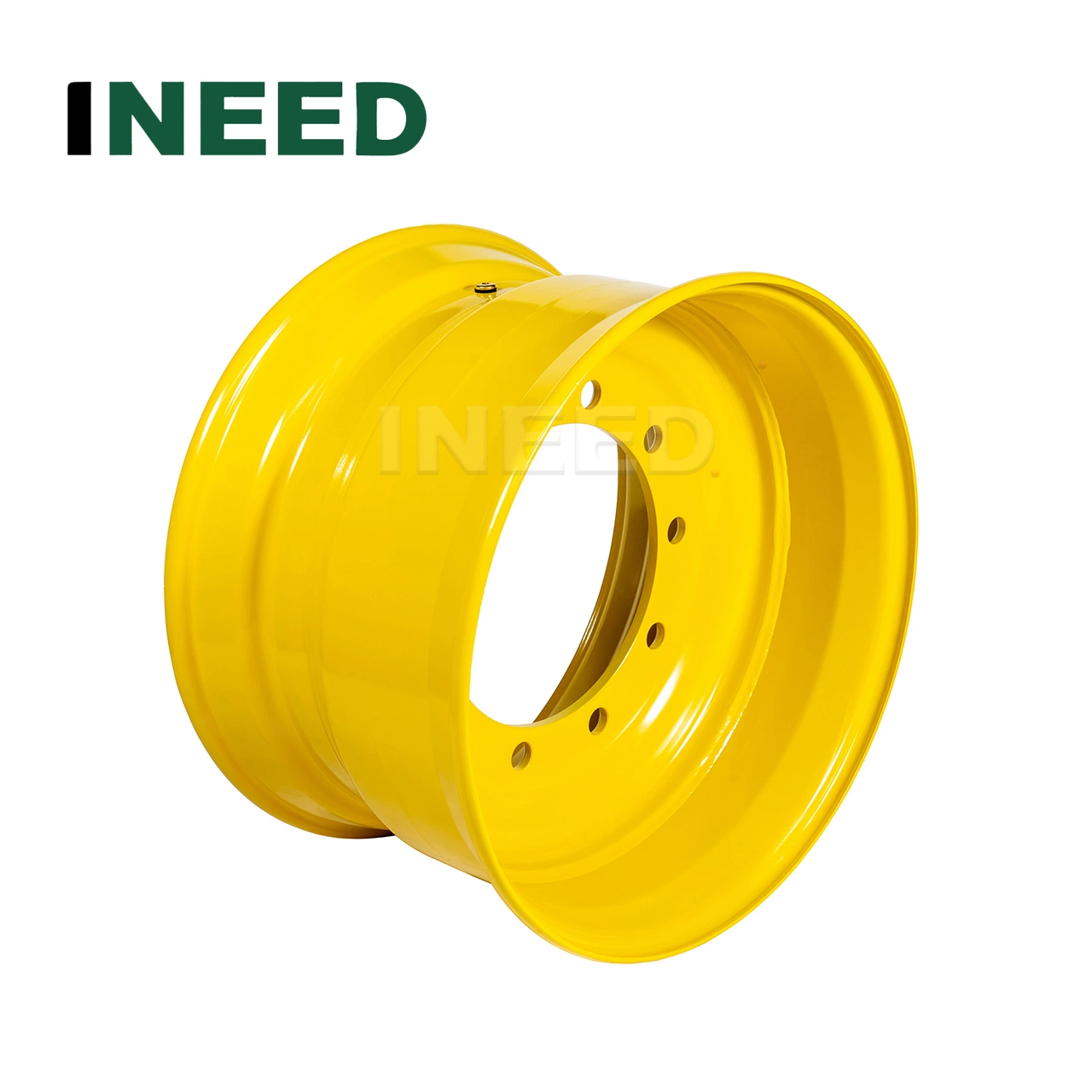

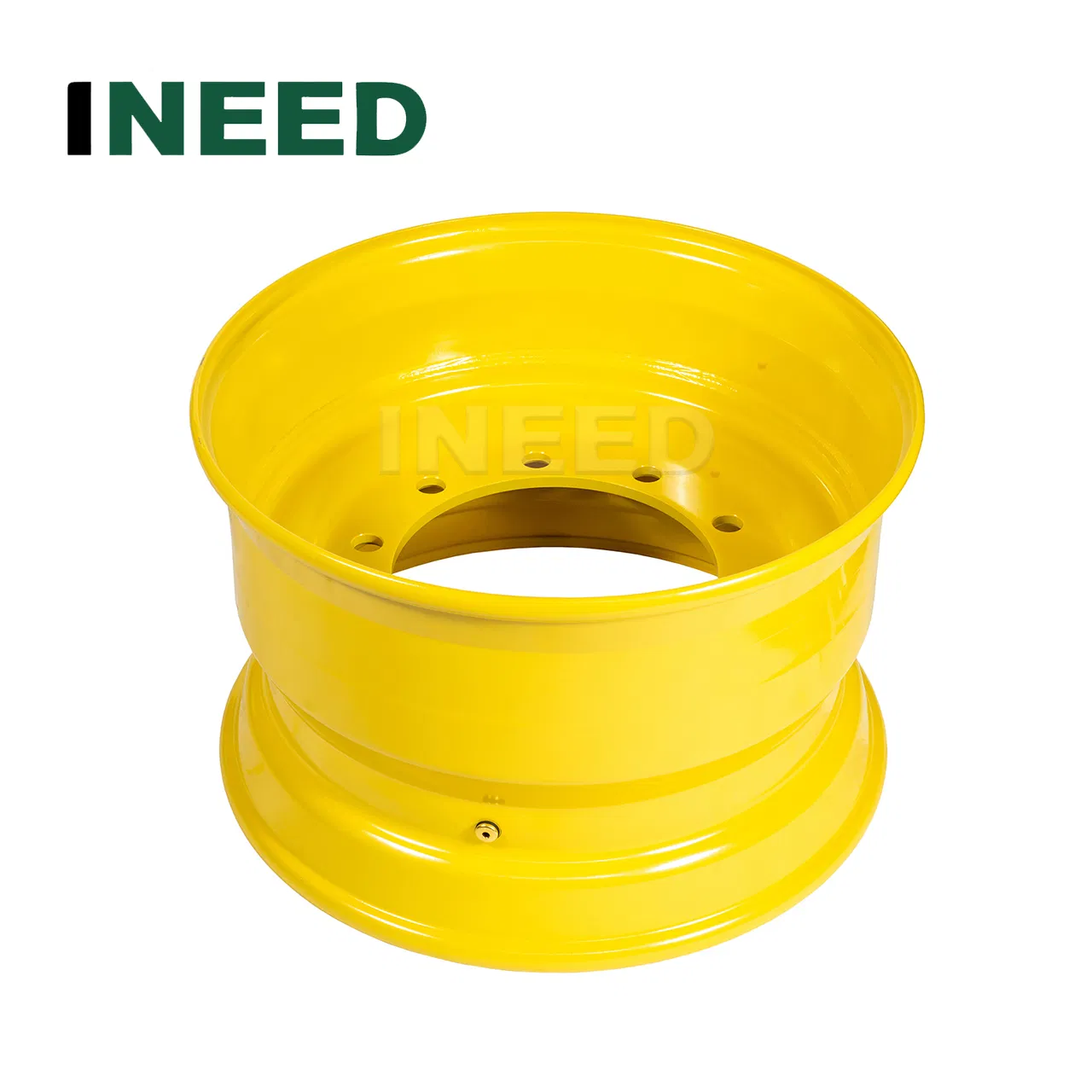

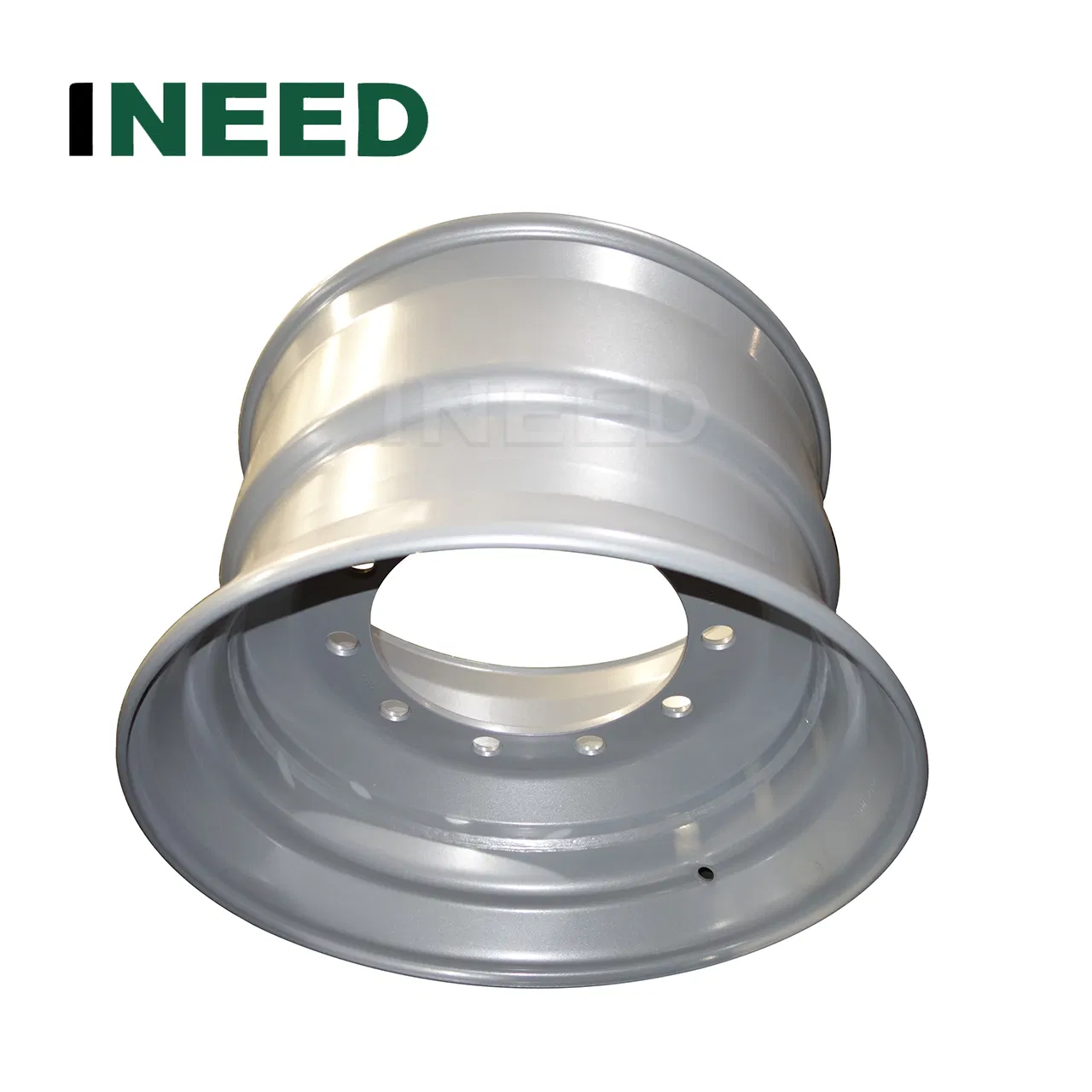

Steel Wheel Rim 14X22.5
Inch Wheel Size Tyre Size Part Number P.C.D (mm) Center Hole (mm) Hole Type Bolts Offset (mm)
22.5 14.00x22.5 18R22.5 / 425/65R22.5 / 445/50R26.5 141275A2P0 275 221 A2 8 0
141335A3P0 335 281 A3 10 0
141335B33N50 335 281 B33 10 Negative 50
Other Available Sizes
Inch Wheel Size Tyre Size Part Number P.C.D Center Hole Hole Type Bolts Offset
15.3 9x15.3 10.0/75-15.3 9153125 125 90 16 5 15
15.5 13x15.5 400/60-15.5 13155205A2P0 205 161 A2 6 0
16 W8x16 10.0/65-16 816205A2P0 205 161 A2 6 0
17 13x17 15.0/55-17 1317A2P0 205 161 A2 6 0
17.5 6.75x17.5 235/75R17.5 6753205A2P0 205 161 A2 6 0
19.5 14.00x19.5 445/65R19.5 142275A2P0 275 221 A2 8 0
22.5 9.00x22.5 12R22.5 9001335A3P145 335 281 A3 10 145
26.5 20x26.5 650/55R26.5 20265335P0 335 281 A3 10 0
FAQ
What types of agricultural machinery are these wheels suitable for?
These steel wheel rims are designed for a wide range of agricultural equipment, including tractors, harvesters, cultivators, trailers, and forestry machinery.
What quality certifications do these wheels hold?
Our products are fully certified with international standards including ISO, DOT, CCC, and ECE, ensuring high safety and performance for global markets.
Can I request a custom bolt pattern or trademark?
Yes, customization is available. We can provide specific bolt hole configurations and custom trademarks based on your technical requirements.
Are these wheels designed for tubeless tires?
Yes, the 14x22.5 model and other radial design sizes are specifically built for tubeless tire applications.
What is the main material and tire design used?
These are high-durability steel wheel rims designed to work optimally with radial tires for better load distribution and soil protection.
What is the standard packaging for international shipping?
To ensure safety during transport, all wheels are securely packed on pallets, suitable for long-distance sea and land freight.
