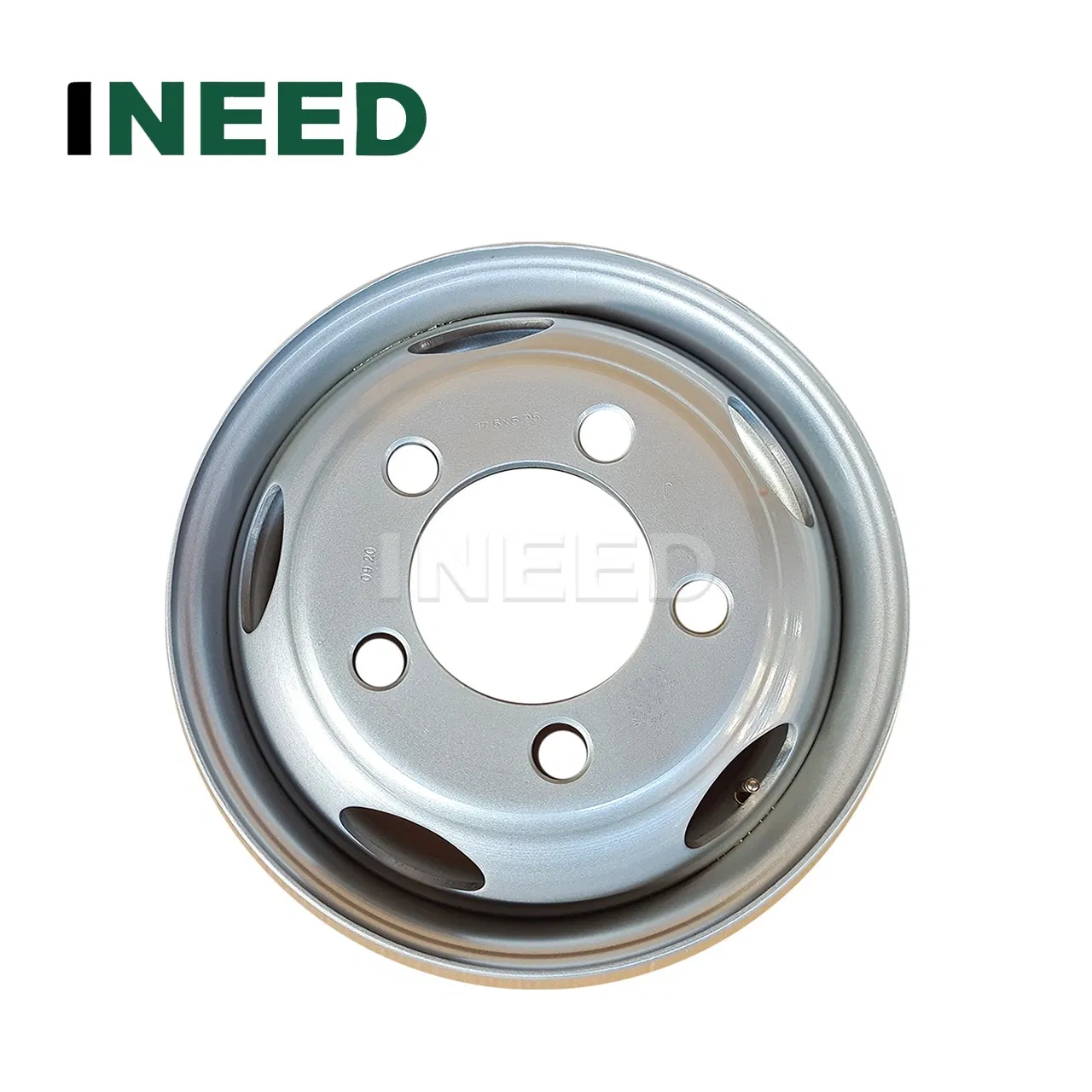

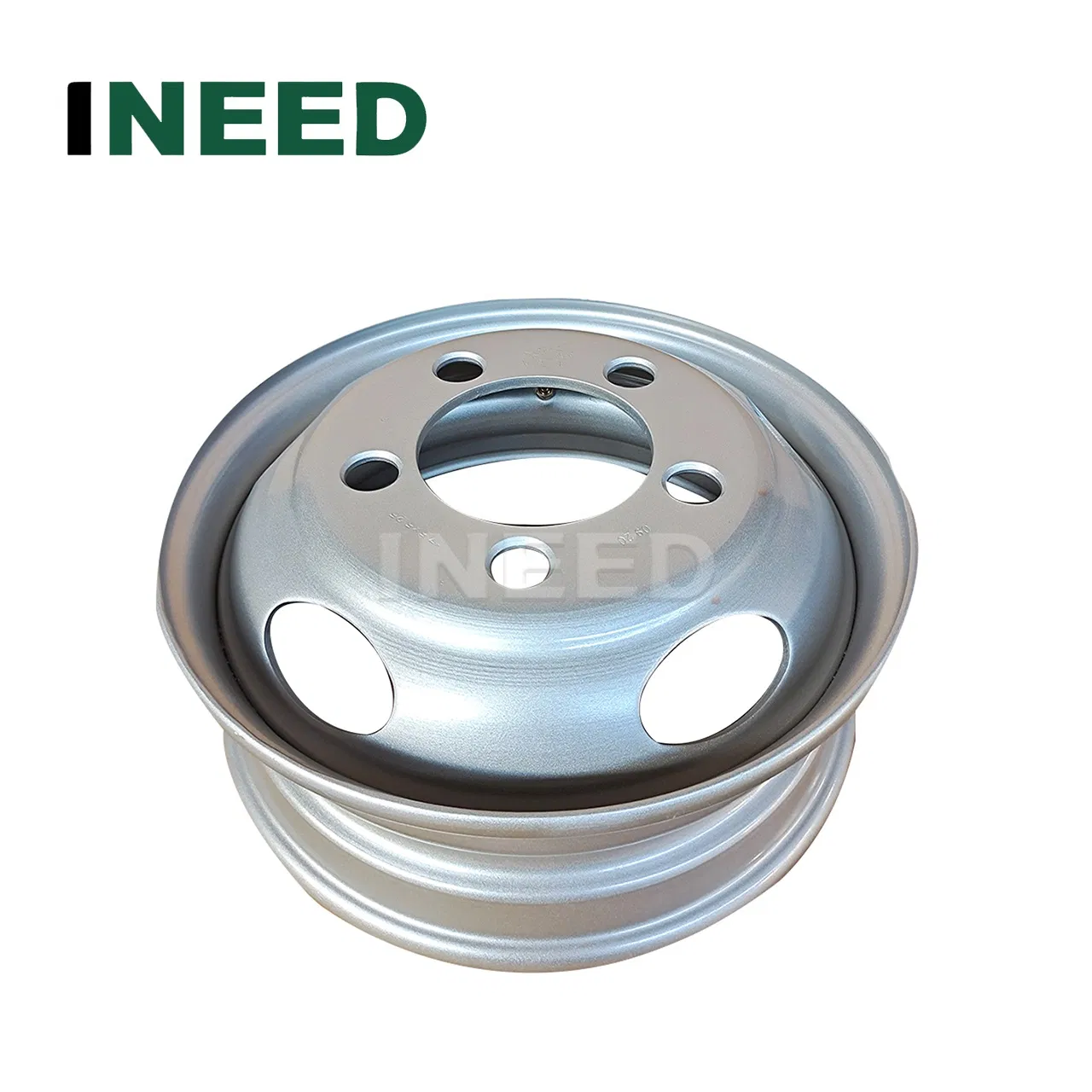

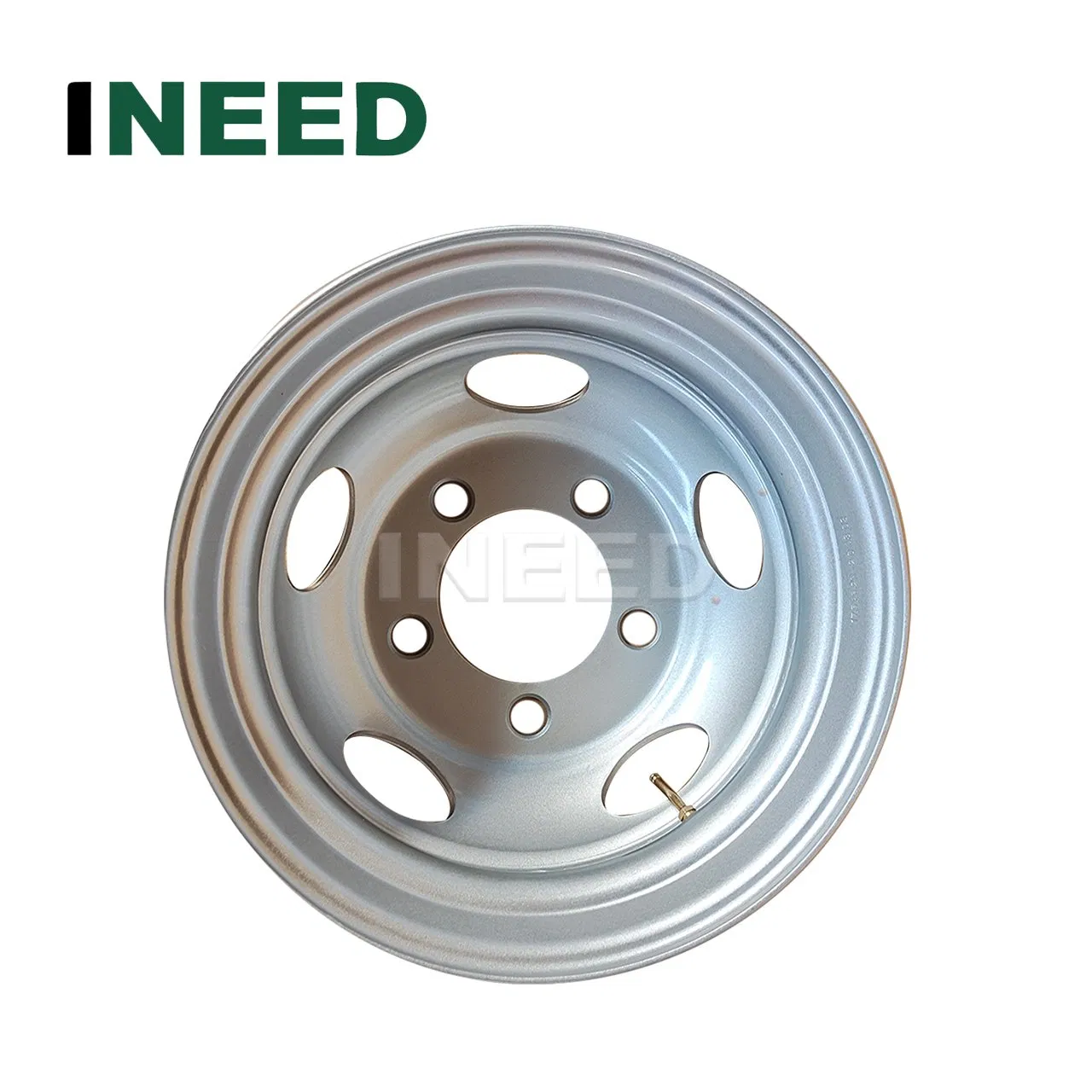

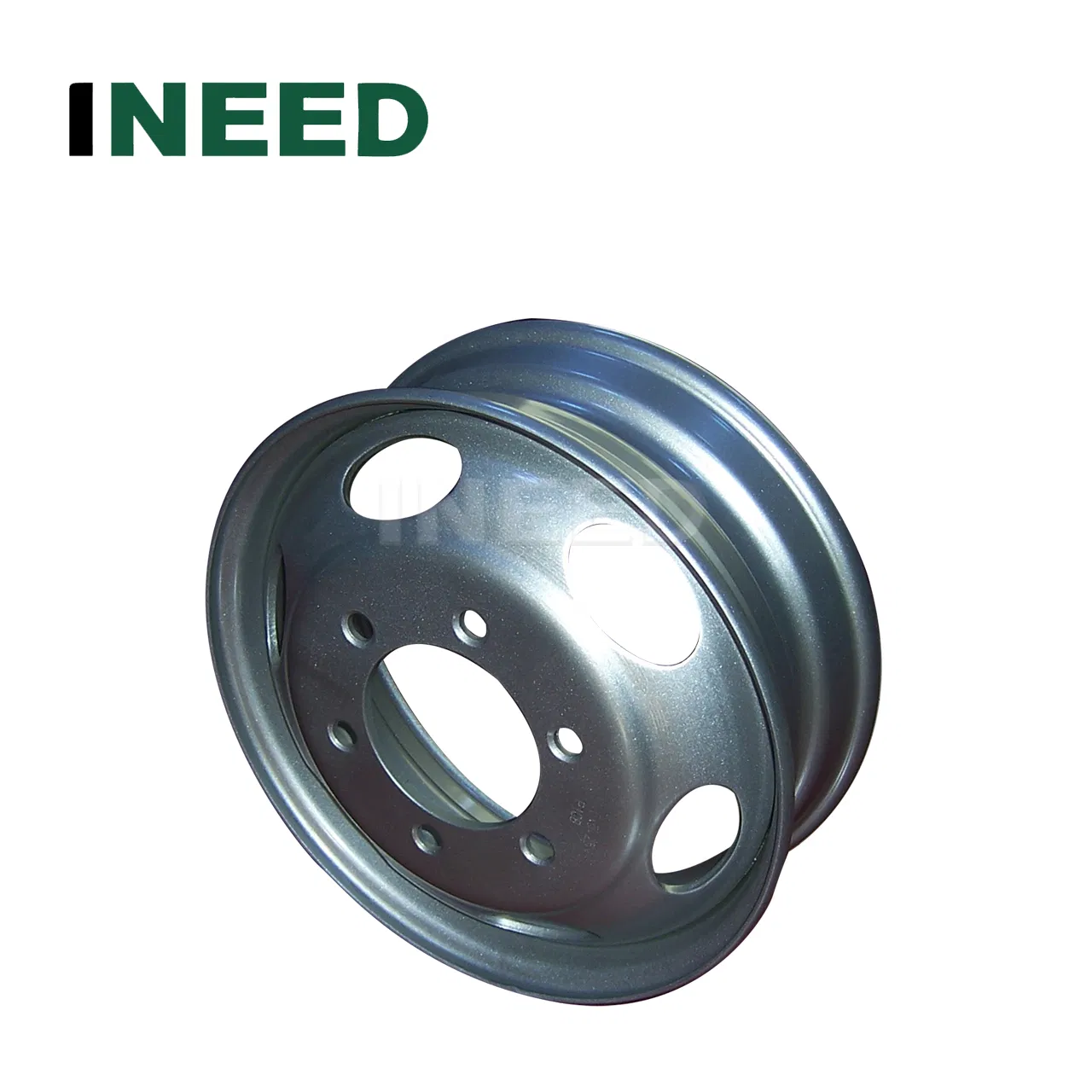

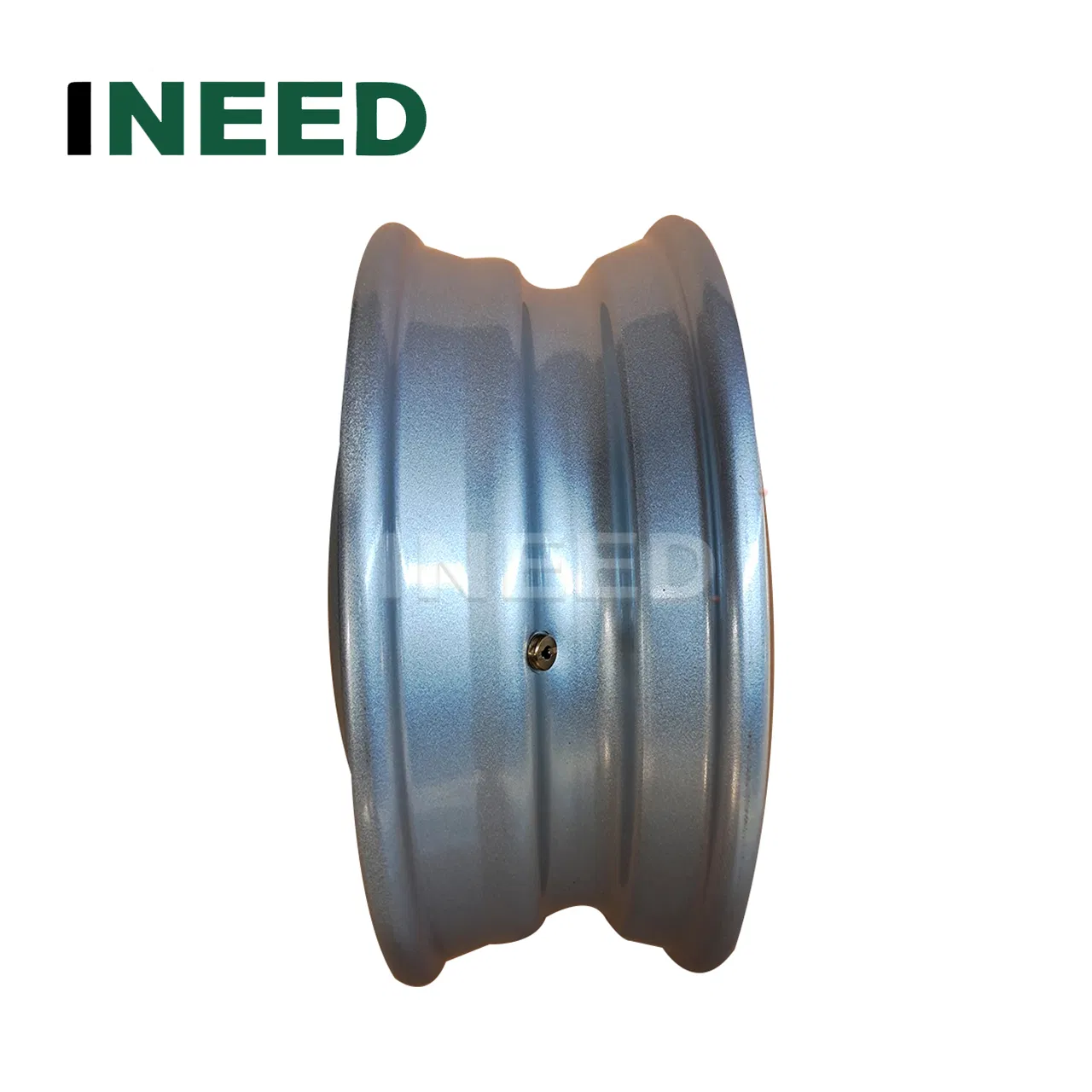

Steel Wheel and Rim 5.25x17.5 designed for Agricultural Machinery, Floatation, Forestry, Harvesters, and Trailers. This high-performance radial tyre structure ensures durability and stability in demanding environments.
| Inch | Wheel Size | Tyre Size | Part Number | P.C.D (mm) | Center Hole (mm) | Hole Type | Bolt Holes | Offset (mm) |
|---|---|---|---|---|---|---|---|---|
| 17.5 | 5.25x17.5 | 285/70R19.5 | 8252205A2P0 | 205 | 161 | A2 | 6 | 0 |
| 8252275A2P0 | 275 | 221 | A2 | 8 | 0 |
| Inch | Wheel Size | Tyre Size | Part Number | P.C.D (mm) | Center Hole (mm) | Hole Type | Bolt Holes | Offset (mm) |
|---|---|---|---|---|---|---|---|---|
| 15.3 | 9x15.3 | 10.0/75-15.3 | 9153125 | 125 | 90 | 16 | 5 | 15 |
| 11.5/80-15.3 | 9153140 | 140 | 94 | A2 | 6 | 0 | ||
| 12.5/80-15.3 | 9153205 | 205 | 161 | A1 | 6 | 0 | ||
| 15.5 | 13x15.5 | 400/60-15.5 | 13155205A2P0 | 205 | 161 | A2 | 6 | 0 |
| 16 | W8x16 | 10.0/65-16 | 816205A2P0 | 205 | 161 | A2 | 6 | 0 |
| 17 | 13x17 | 15.0/55-17 | 1317A2P0 | 205 | 161 | A2 | 6 | 0 |
| 19.5 | 8.25x19.5 | 285/70R19.5 | 8252275A2P0 | 275 | 221 | A2 | 8 | 0 |
| 22.5 | 9.00x22.5 | 12R22.5 | 9001275A2P0 | 275 | 221 | A2 | 8 | 0 |
| 26.5 | 20x26.5 | 600/55R26.5 | 20265335P0 | 335 | 281 | A3 | 10 | 0 |
| 32 | DW27x32 | 800/65R32 | 2732335A3P0 | 335 | 281 | A3 | 10 | 0 |
| 38 | DW23x38 | 26-38 | 233801 | 586 | 510 | H33 | 16 | 0 |
