Home > Steel Wheels > W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors

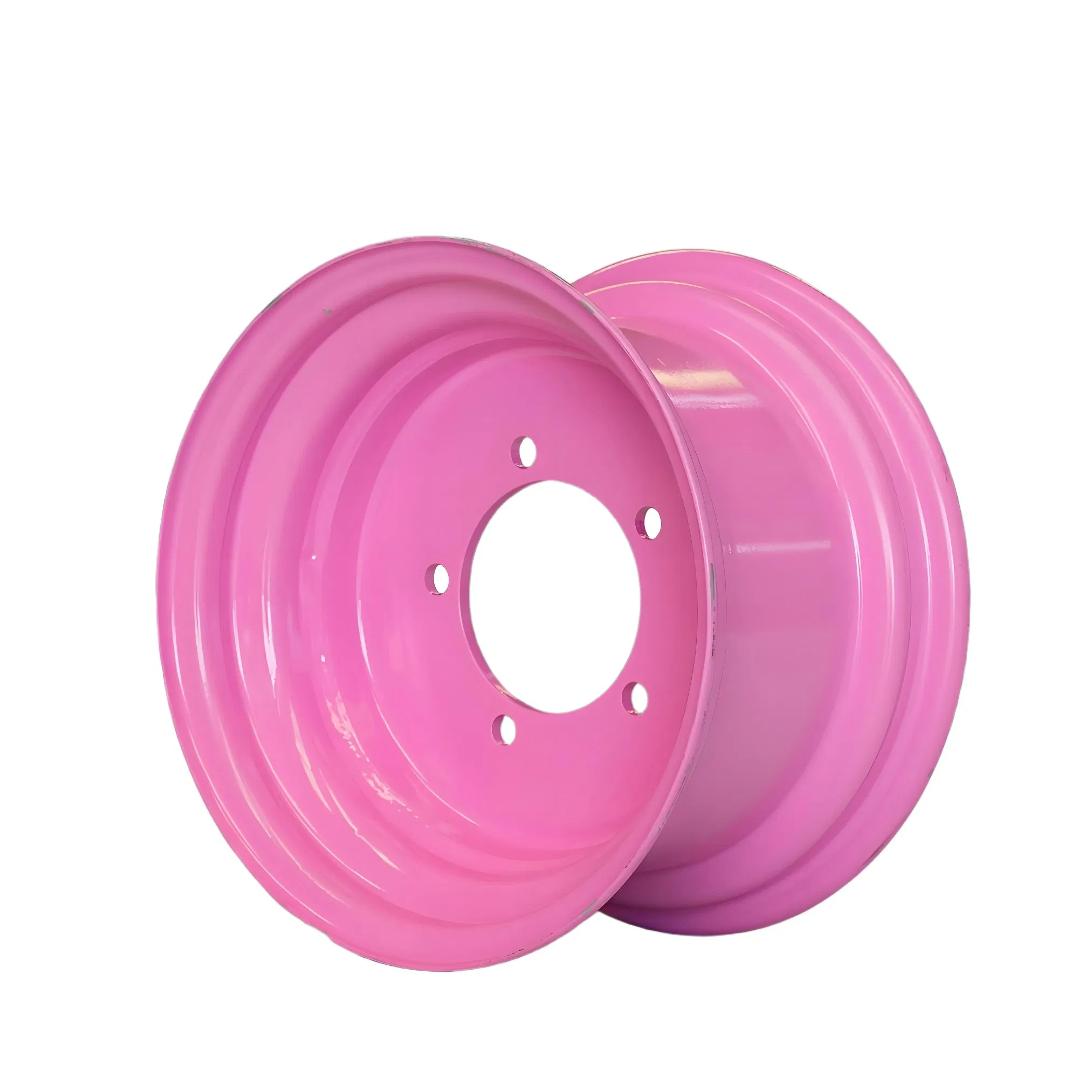

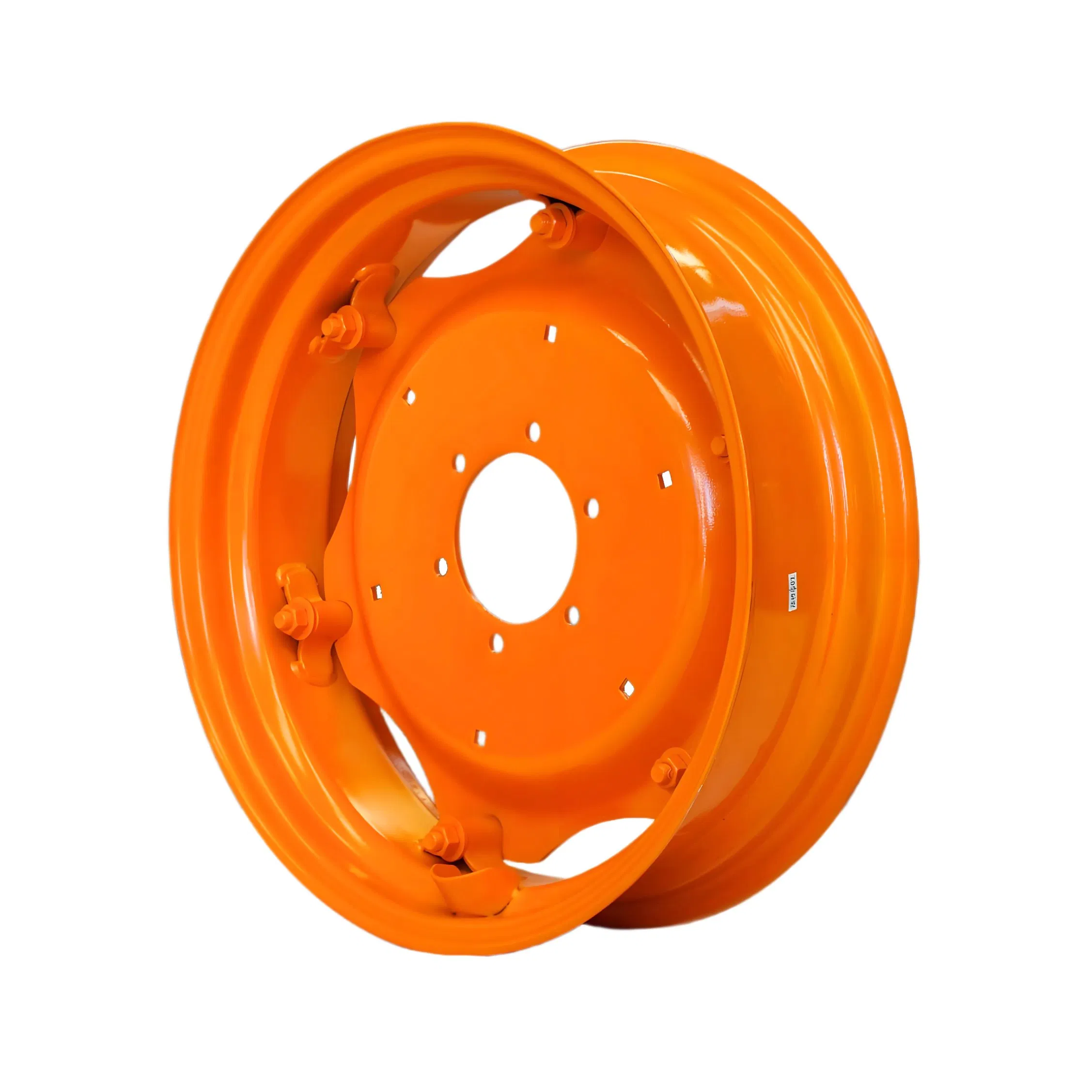

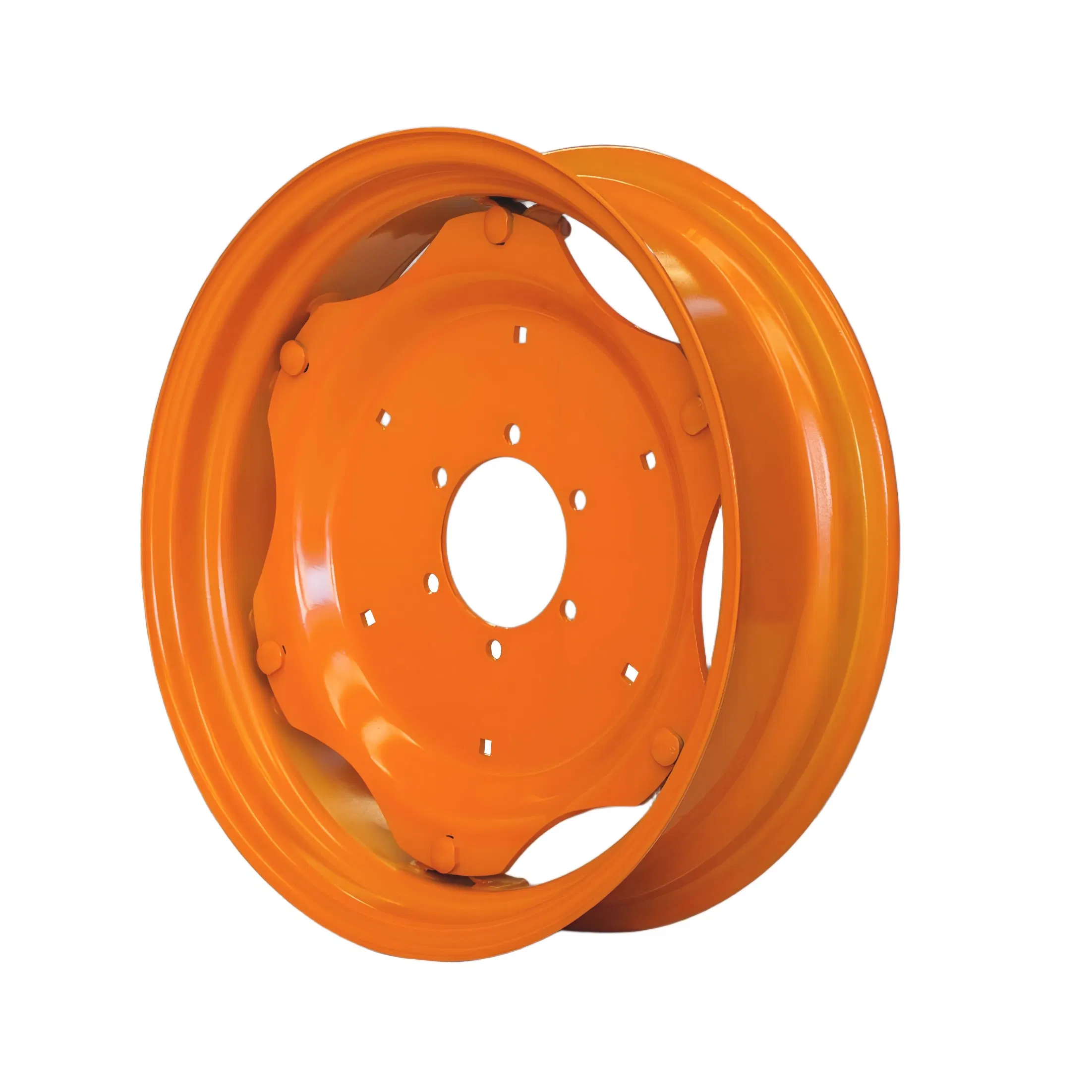

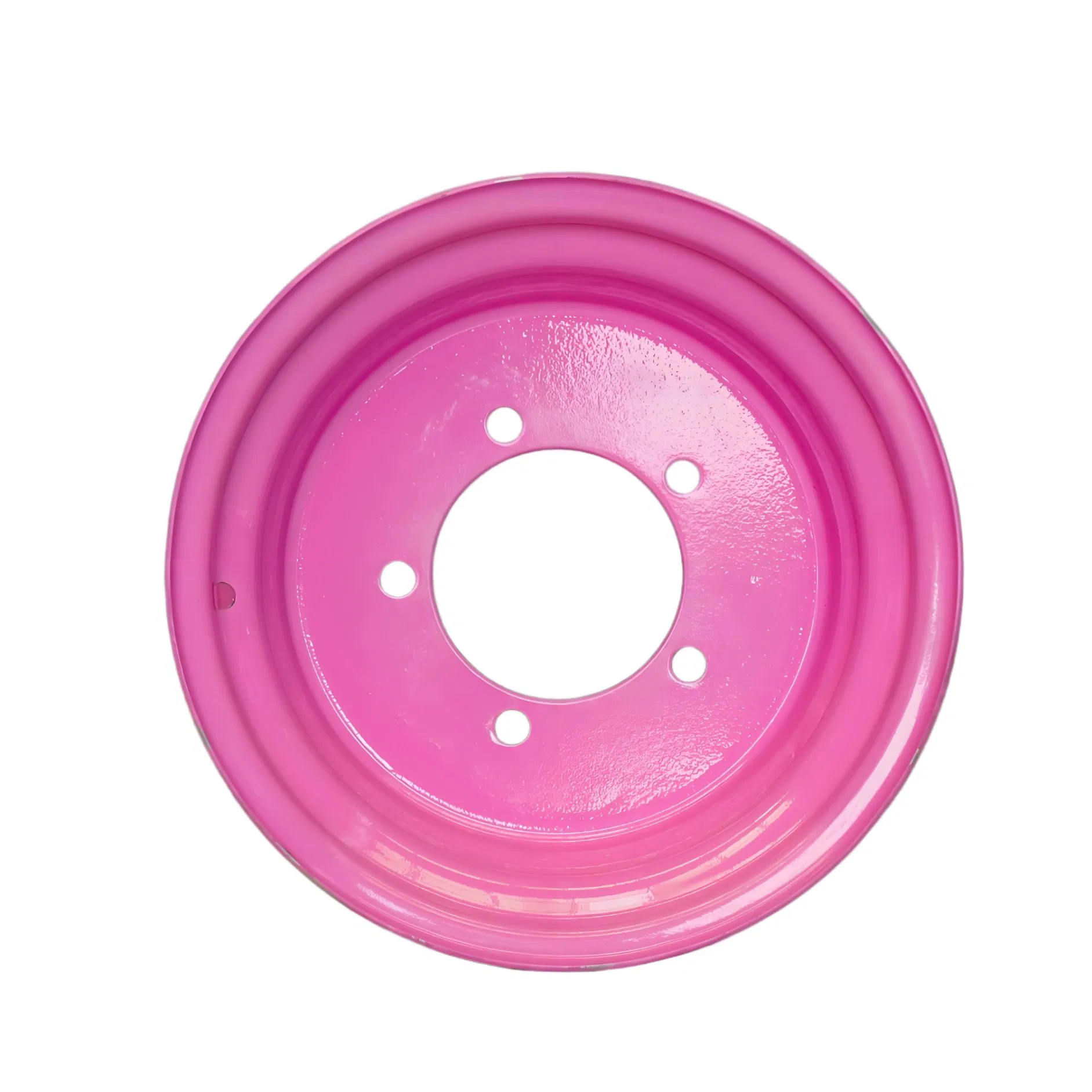

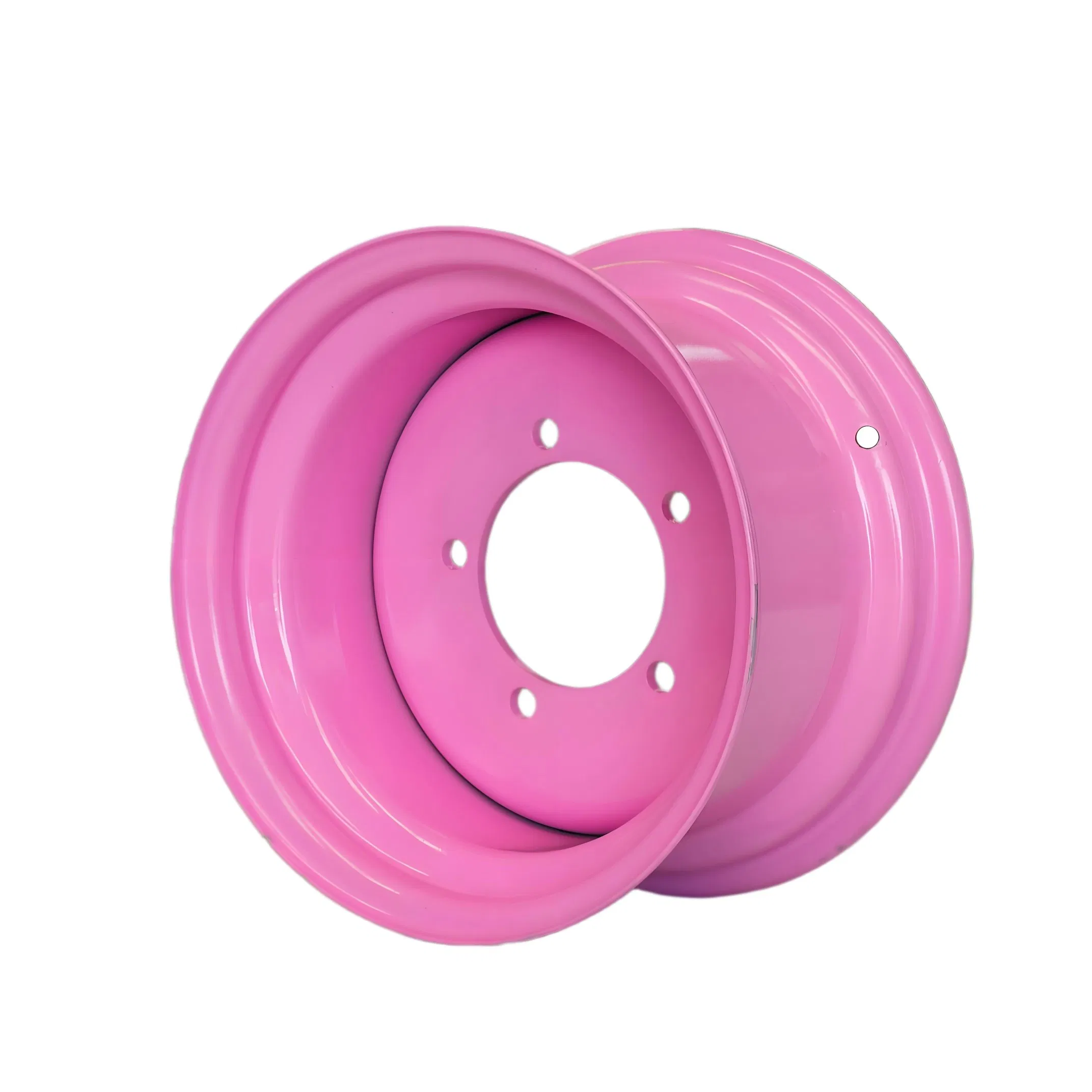

W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
1 / 5
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors
W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors

W7X12, W7X24, W8X24, W10X24, W8X32, W10X46 Steel Agricultural Wheel for Tractors

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
W7x12, W7X24, W8X24, W10X24, W8X32, W10X46
Material
Steel
Type
Rim
Drive Wheel
RWD
Wheel Hub Diameter
12-54 Inch
Finishing
Black
Wheel Accessories
Disc
Spoke Type
Adjustable or Weld
Certification
ISO, IATF16949
Condition
New
Tyre Type
Tt/Tl
Production Capacity
1000PCS/Week
Steel Agricultural Wheel for Tractors
P

Product Description

Tractor wheels are heavy-duty, high-performance components specifically engineered for agricultural applications. These wheels provide optimal traction, load-bearing capacity, and durability for various farming operations.

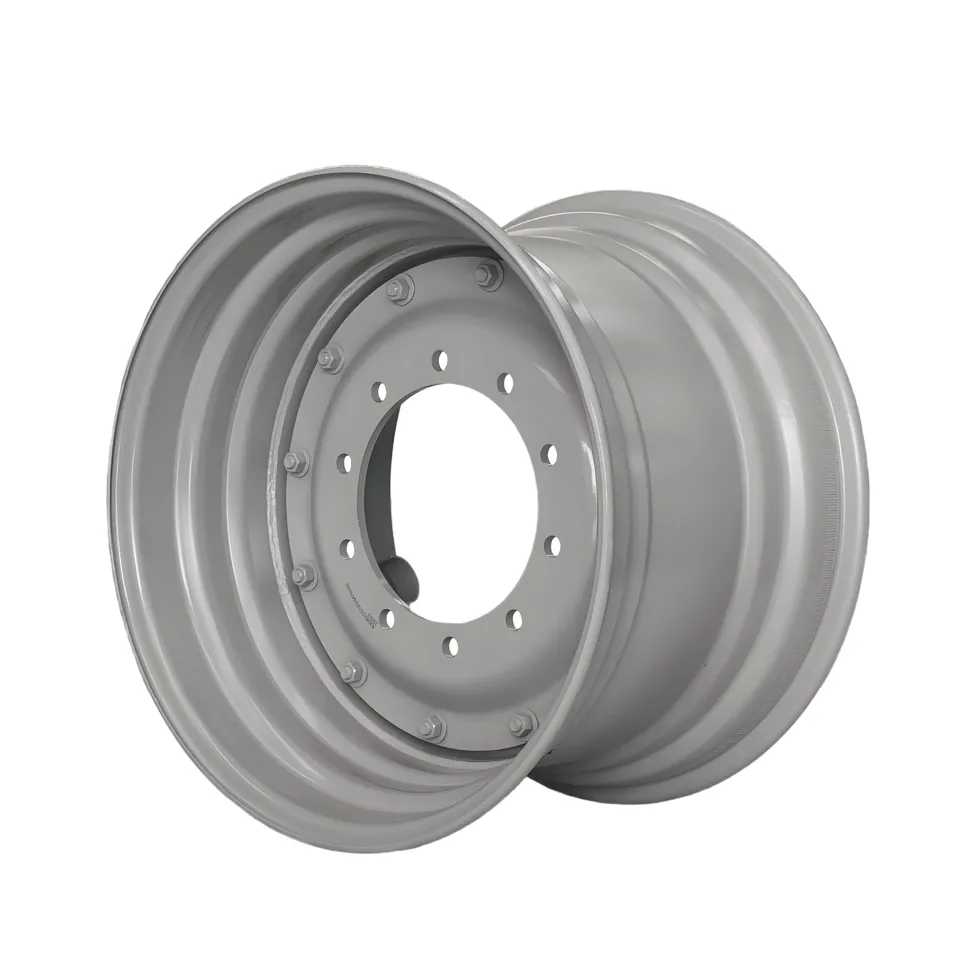

Tractor Wheel Detail

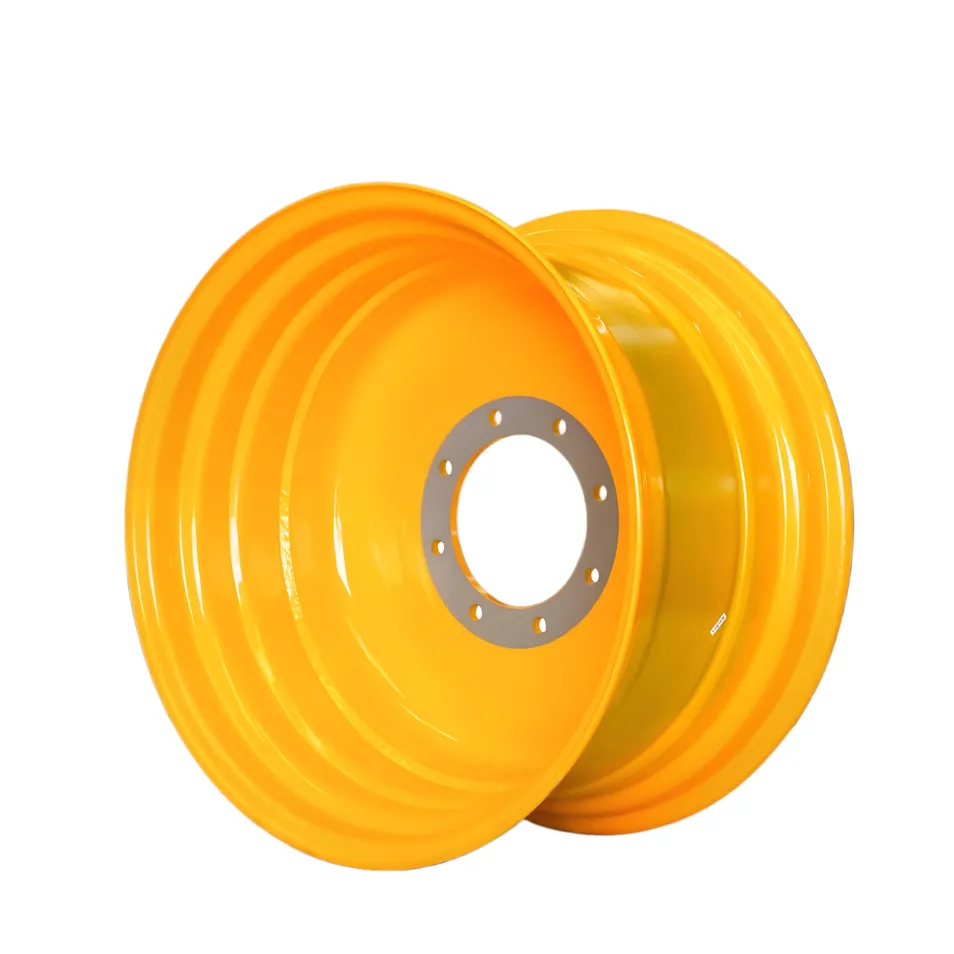

Tractor Wheel View
Key Features:
  • Reinforced steel construction with 4-10mm thick rims
  • Multiple bolt patterns (6-hole to 10-hole configurations)
  • Compatible with standard agricultural tires (R1, R1W, R2)
  • Powder-coated surface treatment options
  • Adjustable track width capabilities

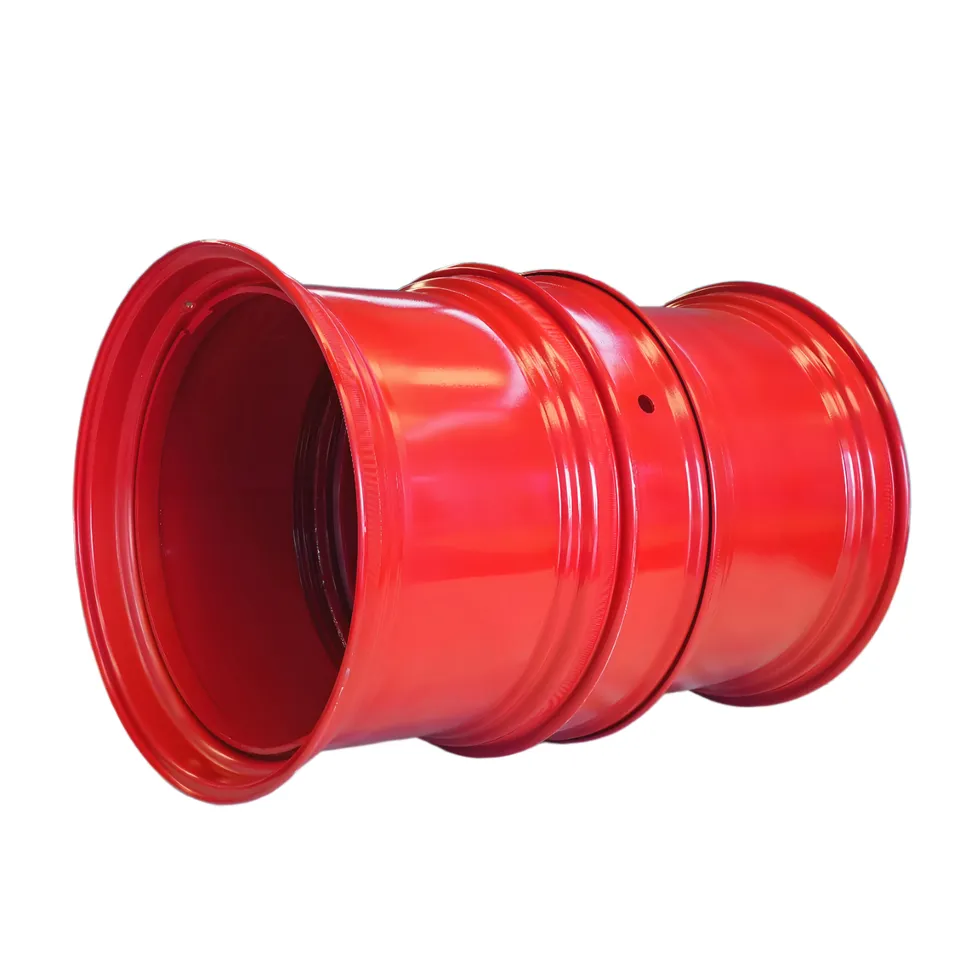

Construction detail

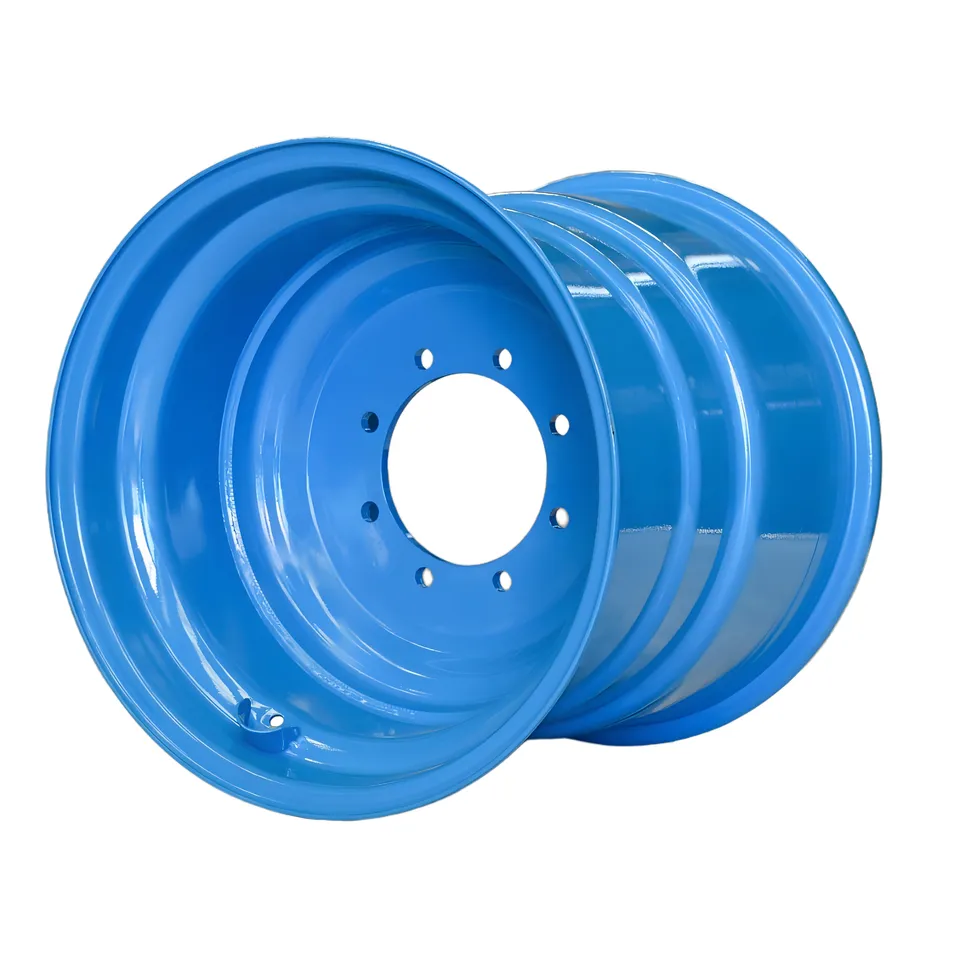

Wheel mounting
Construction Details & Options:
  • Heavy-gauge steel construction and precision-welded spoke designs
  • Reinforced flange edges and Hub-piloted mounting system
  • Balanced for high-speed operation (up to 40 km/h)
  • Dual wheel configurations and Liquid ballast compatibility
  • Custom powder coating colors and specialized tread patterns

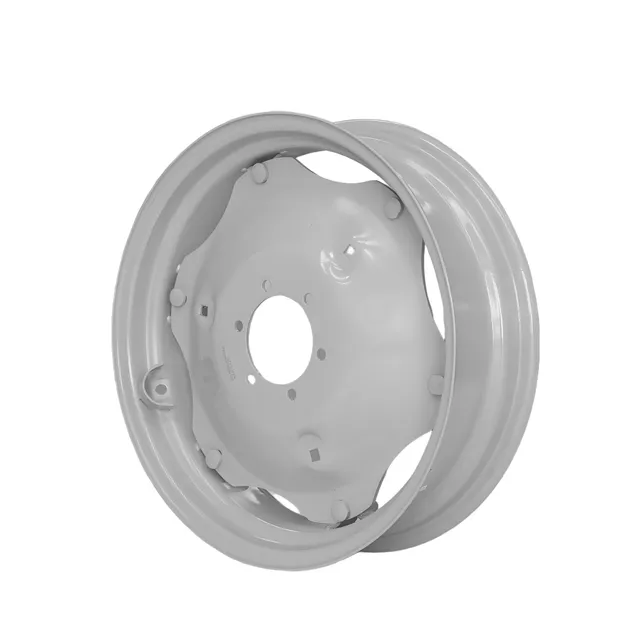

Model A

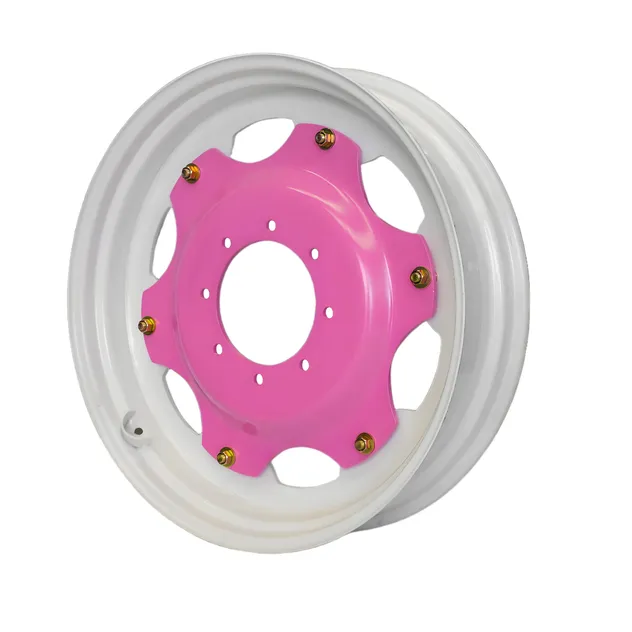

Model B

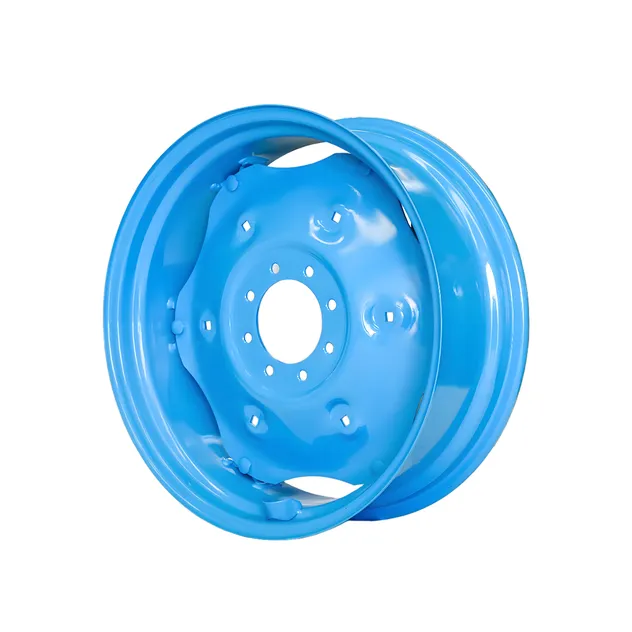

Model C
T

Technical Parameters

Wheel DIA. Wheel Size Tire Size CBD (mm) PCD (mm) Bolt Hole Hole DIA(mm) Connection Mode Offset (mm)
12 3.00D 4.00-12 79 114.3 5 13 Welding 70
4.50E 6.00-12 92 127 4 15 -1
7.00 10.0/80-12 93/94 140 5 15/16.5/20 0/25
14 3.00D 4.00-14 100.5/102 161 6 15/17/20 Welding 0/25
4.50J 6.00-14 110 140 5 15 0
15 6.00F 9.00-15 110 140 6 12/15/17 Welding 0/30
W8 11L-15 110 150 6 14 5
16 W11L 13/65-16 161 205 6 19/21.5 Welding 0
Drawing
Wheel Stack
Product detail 1
Product detail 2
Warehouse
?

Frequently Asked Questions

Can I obtain samples for testing?
Yes, samples are available for quality evaluation and testing purposes.
Are OEM and ODM services provided?
Yes, we provide full OEM/ODM services. Your specific logos and designs can be professionally applied to the products.
What is the production capacity of your facility?
As one of the leading manufacturers in the region, our current production capacity is 2,000 wheels per day.
What is the typical delivery timeframe?
For standard 1*40HC container orders, the delivery time is generally within 30 days after receiving the advance payment.
What are the accepted payment terms?
Our standard terms are 30% TT in advance, with the remaining 70% balance to be paid before shipment.
Are the wheels compatible with standard agricultural tires?
Yes, our wheels are designed to be compatible with standard agricultural tires such as R1, R1W, and R2 types.
