Home > Steel Wheels > Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

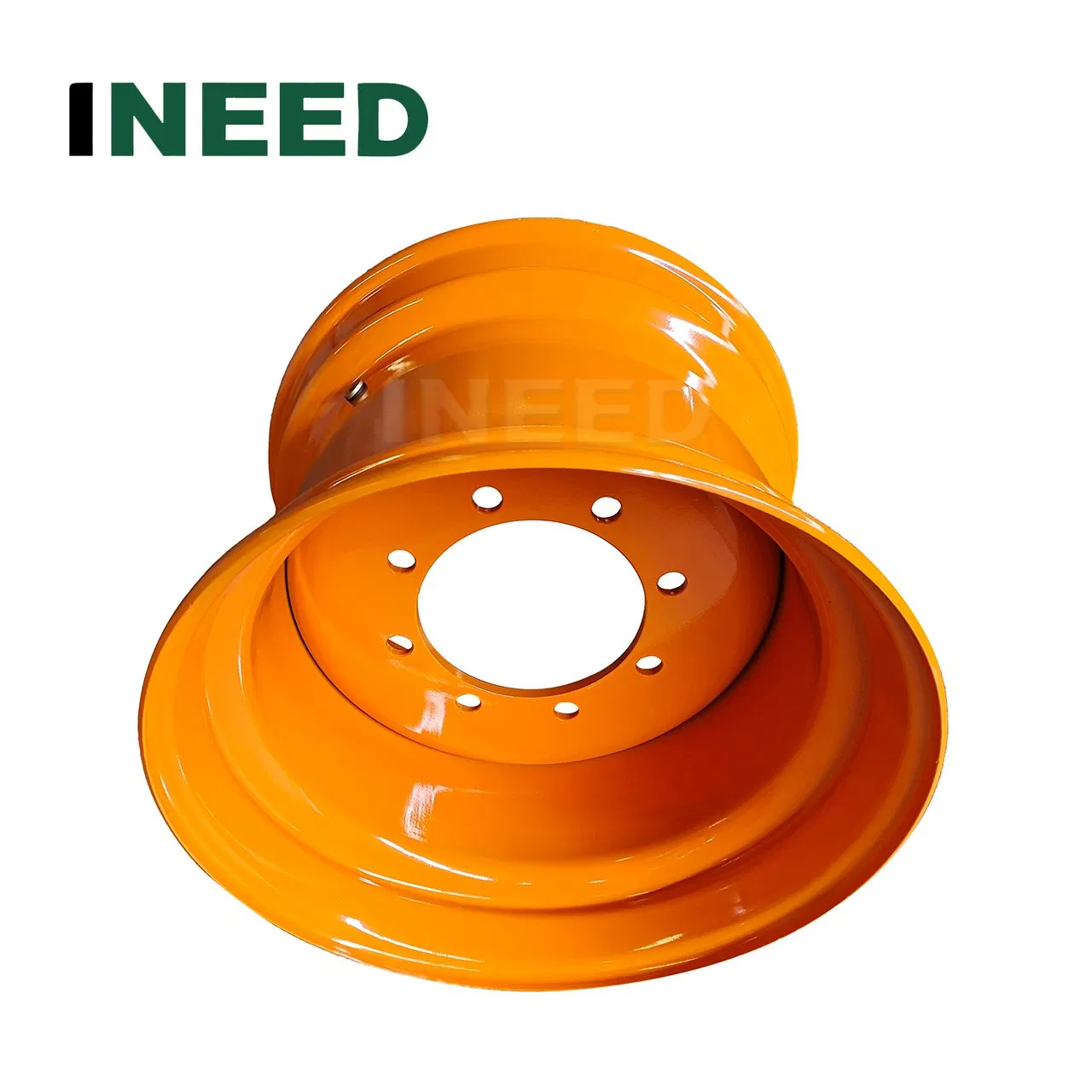

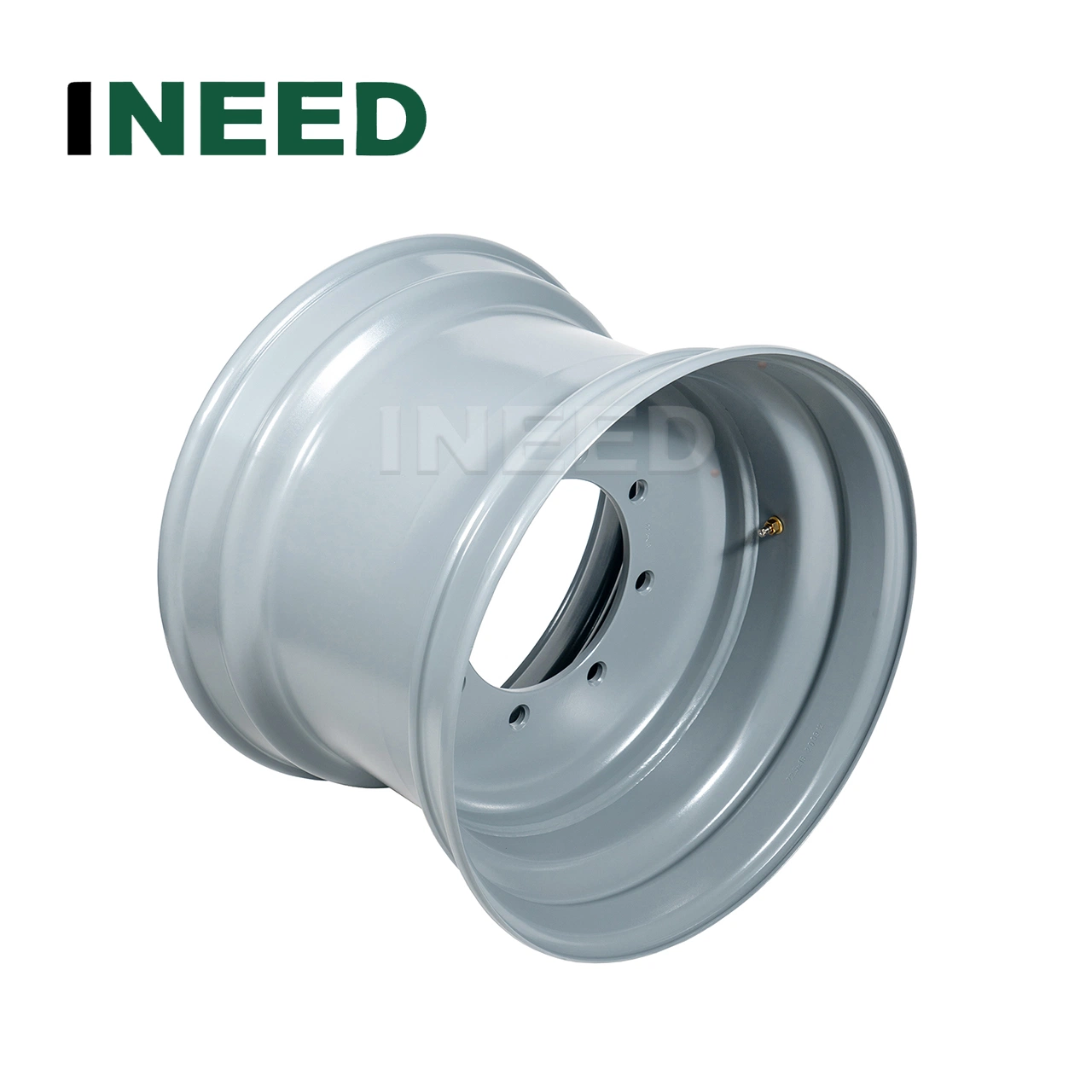

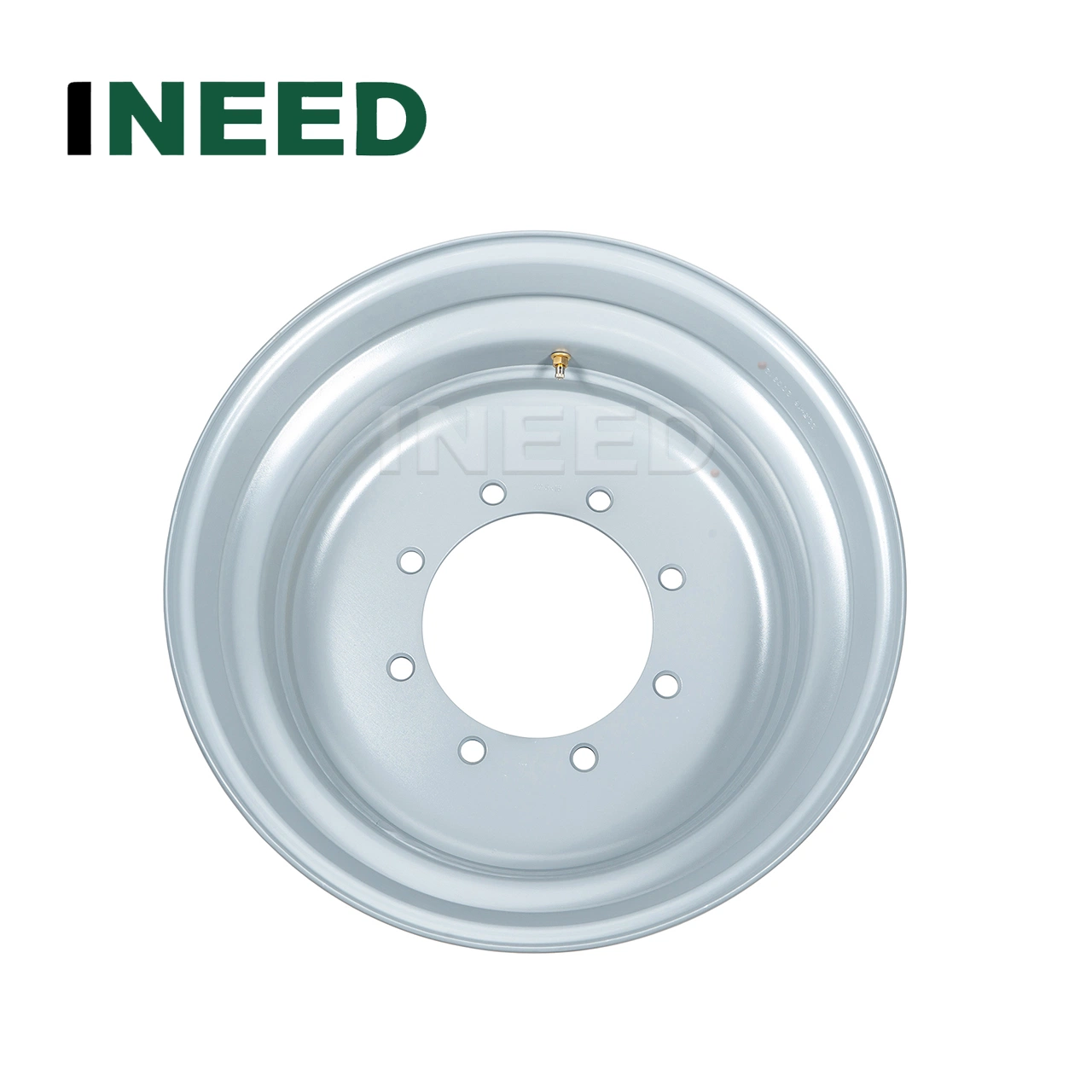

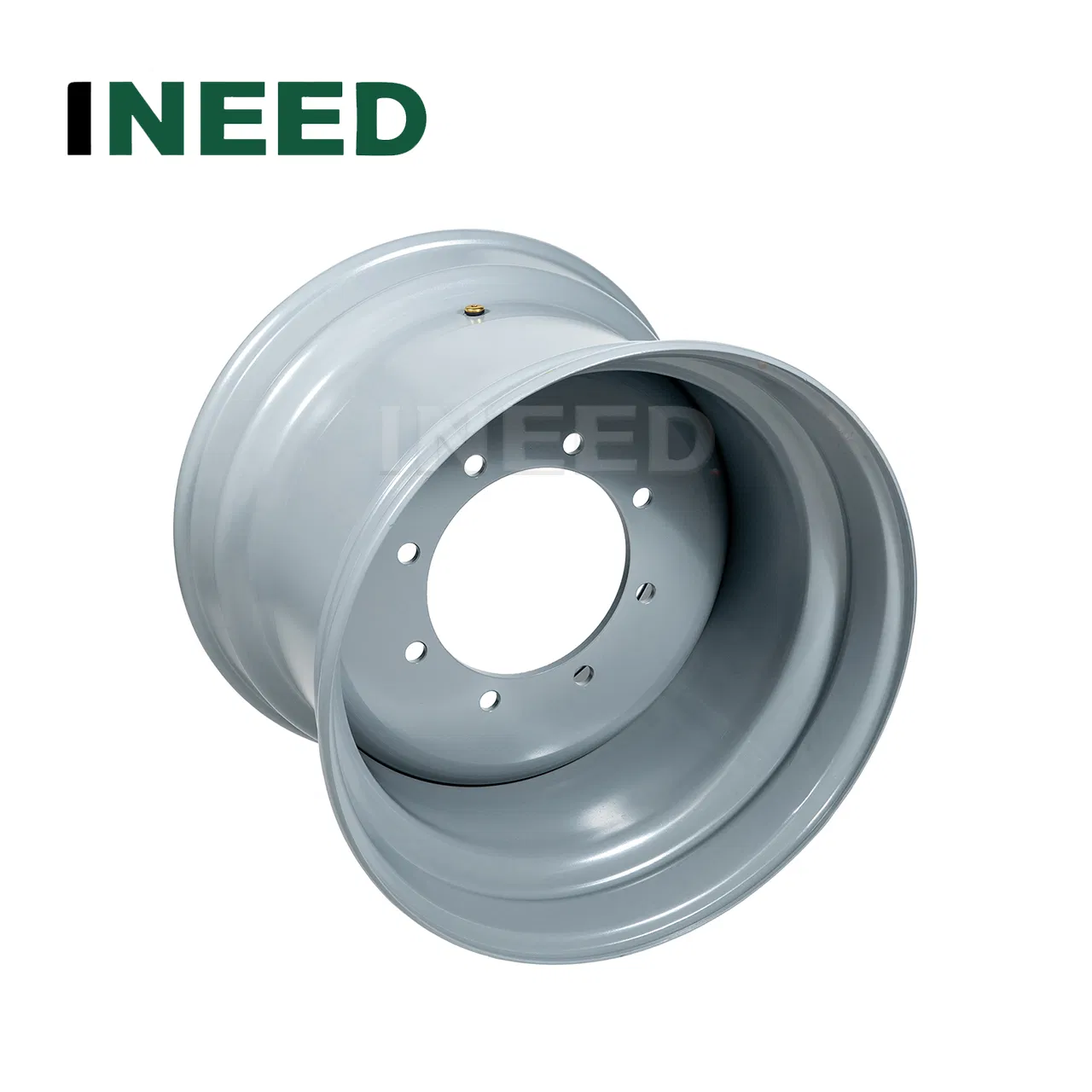

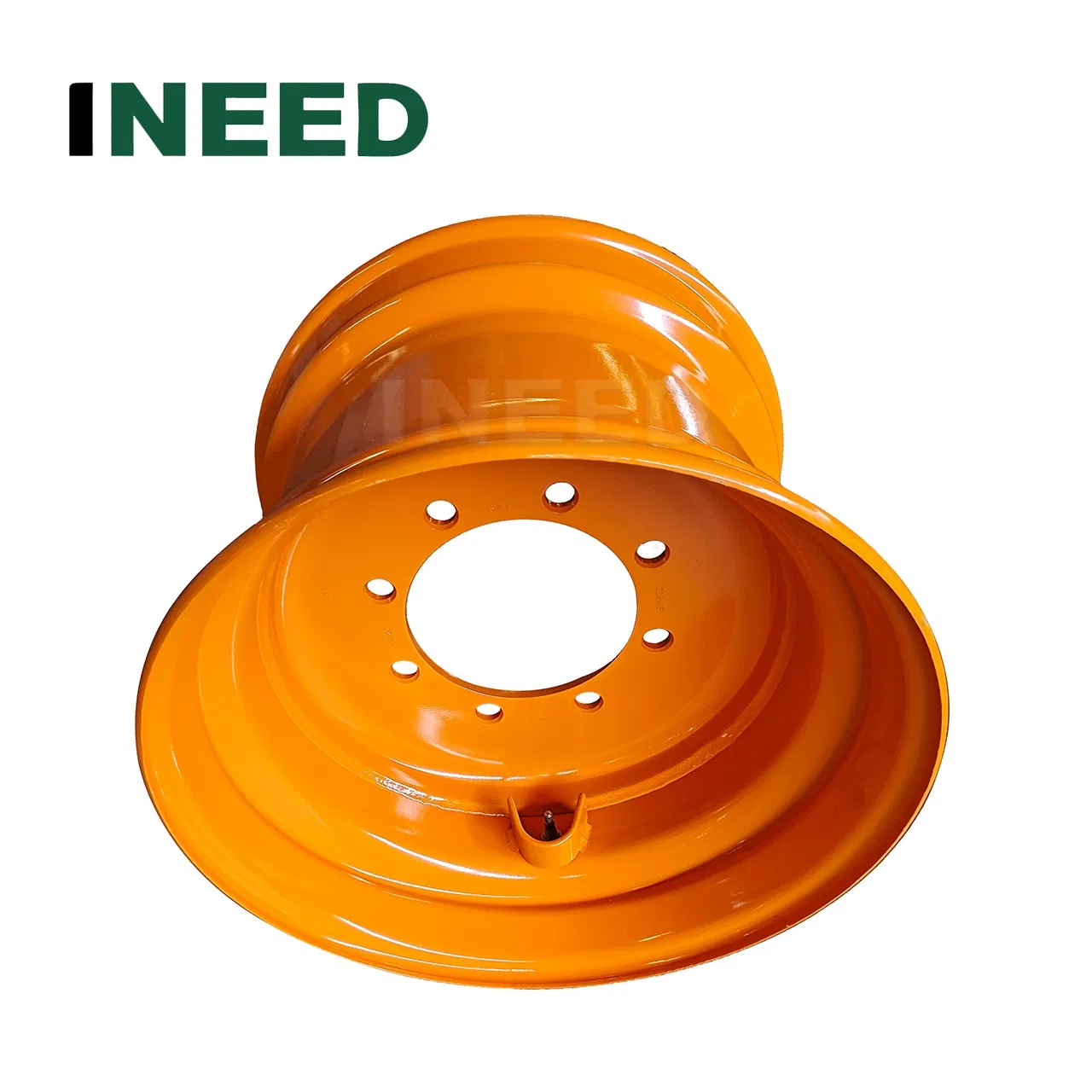

Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
1 / 5
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer
Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

Steel Wheel Rim 16X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
16x22.5
Diameter
15-16"
Type
Tubeless
Certification
ISO, DOT, CCC, ECE
Usage
Tractors, Harvesters, Cultivators
Tire Design
Radial Tyre
Main Market
Europe
HS Code
870870
🚜 Product Description
Steel Wheel Rim 16X22.5 for Agricultural Machinery
Application: Designed for Agricultural Machinery, Floatation, Forestry, Harvesting, and Trailers.
Inch Wheel Size Tyre Size Part Number P.C.D (mm) Center Hole (mm) Hole Type Bolt Holes Offset (mm)
22.5 16.00x22.5 550/45R22.5
550/60R22.5
560/45R22.5
550/60-22.5
500/45-22.5		 161335A3P0 335 281 A3 10 0
161335B3P0 335 281 B3 10 50
161335B333P0 335 281 B33 10 0
161275A3N50 275 221 A3 8 -50
161205A2P0 205 161 A2 6 0
📏 Comprehensive Size Range

We provide a wide variety of dimensions to suit different agricultural requirements:

Inch Wheel Size Tyre Size P.C.D (mm) Center Hole (mm) Hole Type Bolt Holes Offset (mm)
15.3 9x15.3 10.0/75-15.3, 11.5/80-15.3 125/140/205 90/94/161 16/A2/A1 5/6 15/0
15.5 13x15.5 400/60-15.5 205 161 A2 6 0/N35
16 W6x16 / W8x16 215/65-16, 10.0/65-16 150/205 90/161 15.5/A2 6 50/0
17 13x17 / 16x17 15.0/55-17, 19.0/45-17 205 161 A2 6 0
17.5 6.00x17.5 / 6.75x17.5 9R17.5, 215/75R17.5 205/275 161/221 A2/B2 6/8 0/141/145
19.5 7.50x19.5 / 11.75x19.5 245/70R19.5, 385/55R19.5 205/275 161/221 A2 6/8 0
22.5 8.25x22.5 / 11.75x22.5 295/80R22.5, 385/65R22.5 205/275/335 161/221/281 A2/A3/B3 6/8/10 0/145
26.5 20x26.5 600/55R26.5, 650/55R26.5 275/335 221/281 B2/A3 8/10 -50/0
❓ Frequently Asked Questions
What machinery are these steel wheel rims suitable for?
These rims are primarily designed for heavy-duty agricultural machinery, including tractors, harvesters, cultivators, forestry equipment, and various types of trailers.
Do these rims support tubeless tires?
Yes, the 16x22.5 and related models are specifically designed as tubeless (TL) rims, which offer better heat dissipation and reduced risk of sudden deflation.
Are the wheel rims compatible with radial tire designs?
Absolutely. These rims are engineered to work seamlessly with both radial and bias-ply agricultural tires, as indicated in the specifications.
What quality certifications do your products hold?
Our wheel rims are manufactured to meet international standards and hold certifications including ISO, DOT, CCC, and ECE, ensuring reliability and safety in the field.
Can the bolt hole patterns (P.C.D) be customized?
Yes, while we offer standard patterns like 8-hole and 10-hole configurations (e.g., 275mm or 335mm P.C.D), we provide customization options to meet specific machinery requirements.
How are the rims protected during international transport?
To ensure safe delivery, all rims are securely packed on heavy-duty pallets, which prevents shifting and damage during sea or land transit.
