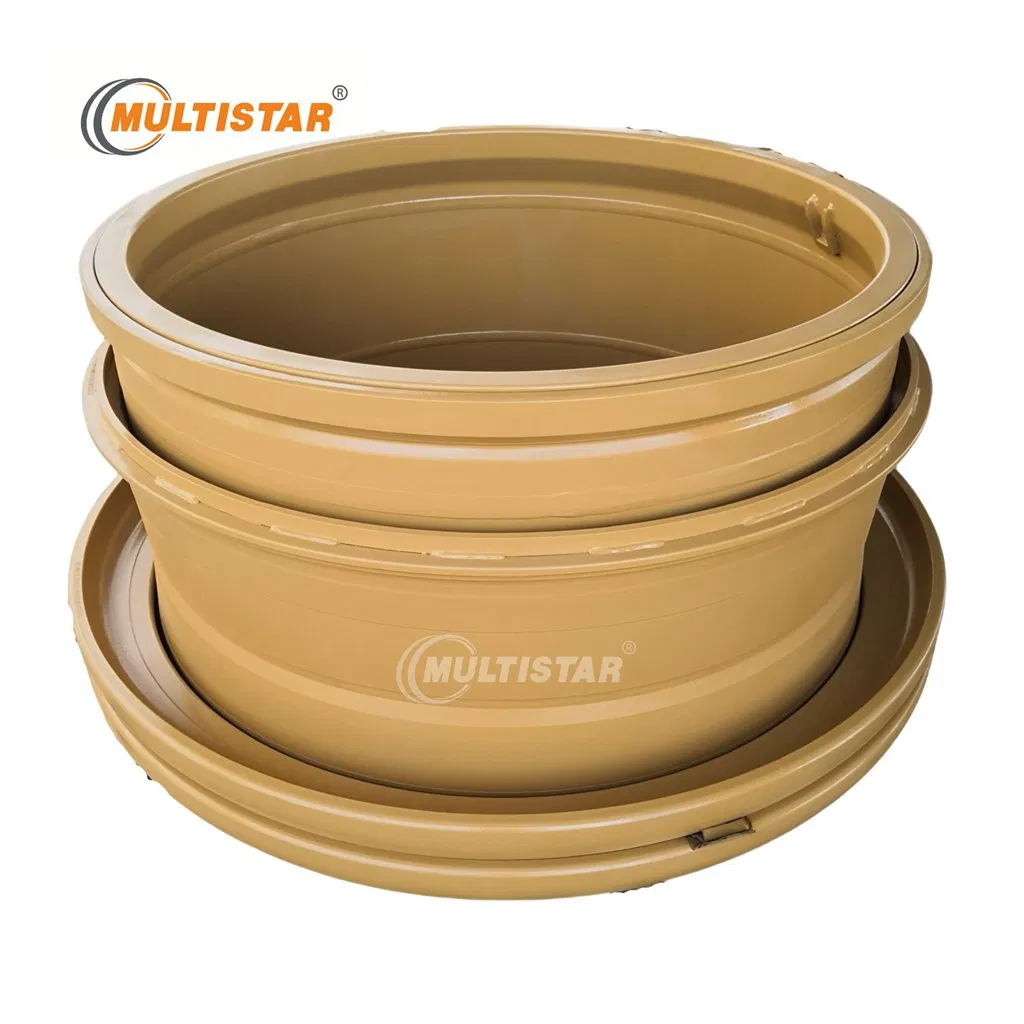

Heavy Duty Multi Pieces OTR Wheel Rim 51-26.00/5.0 for off-Road Vehicles

1 / 5

Heavy Duty Multi Pieces OTR Wheel Rim 51-26.00/5.0 for off-Road Vehicles

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

📦 Basic Information

Model NO.

OTR Wheel Rim 51-26.00/5.0

Material

Steel

Type

Rim

Wheel Hub Diameter

51"

Finishing

Paint

Certification

ISO, AS4457.1-2207

Fitted Tyre

36.00R51

Production Capacity

2000 PCS/Year

🚚 Packaging & Delivery

Package Size

129.00cm * 66.00cm * 129.00cm

Gross Weight

30.000kg

Transport Package

In Pallets

📝 Product Description

Expert manufacturer of multi-piece OTR wheels and rim assemblies for mining and industrial applications. Our designs feature stronger lock rings, heavier flanges, and fully machined precision gutter discs. These components are engineered to increase wheel life, efficiency, and dependability, ensuring operations remain productive and safe.

⚙️ Quality Control & Process

High-Strength Materials: Rolling sections utilize Q345D for gutter sections, back sections, bead seat bands, and flanges, with 50Mn for locking components.
Precision Machining: All critical parts including gutter sections and center bands are machined using state-of-the-art CNC technology.
Rigorous Inspection: Weld beads undergo ultrasonic detection. Magnetic and X-ray inspections are applied to key weld points as required.
Advanced Finishing: Components are sandblasted and treated with epoxy resin electrophoretic primer and OEM-specification topcoats.

📊 Product Parameters

Application Category	Available Series & Sizes
Giant Mining (Rigid Dump Truck)	39", 45", 49", 51", 57", 63" series for tires up to 59/80R63. Available in 5-piece, 6-piece & 7-piece designs.
Ground Mining (Articulated/Rigid)	25", 29", 33", 35" series for various tire configurations including 29.5R29 and 24.00-35.
Underground Mining & Support	15" to 39" series for loaders, haulers, and support drill rigs.
Construction (Loader/Grader)	20" to 49" series including 3-piece IF and 3-piece standard designs.
Port & Material Handling	24", 25", 33", 35" series for reach stackers and container handlers.

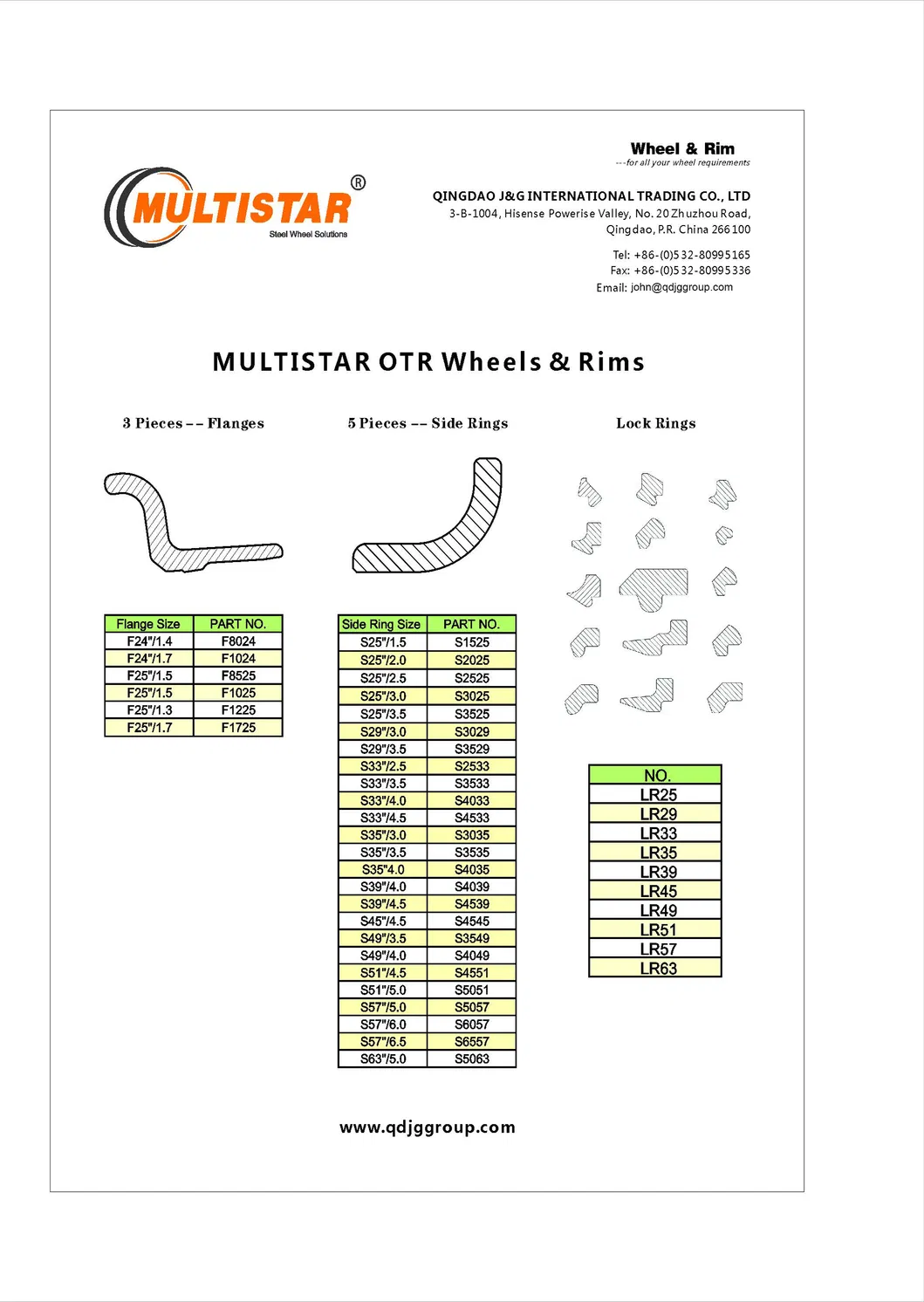

📐 Rim Components Diagram

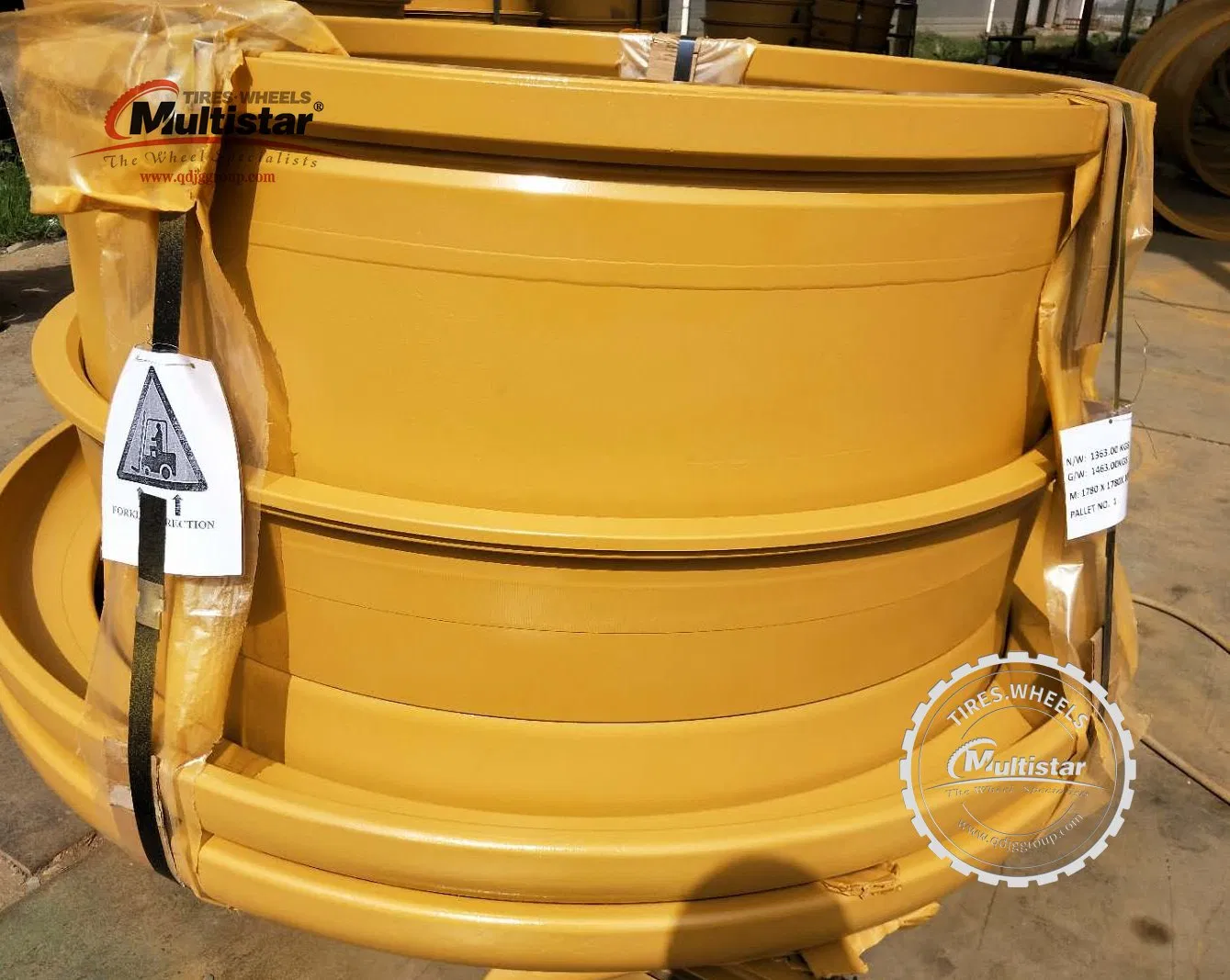

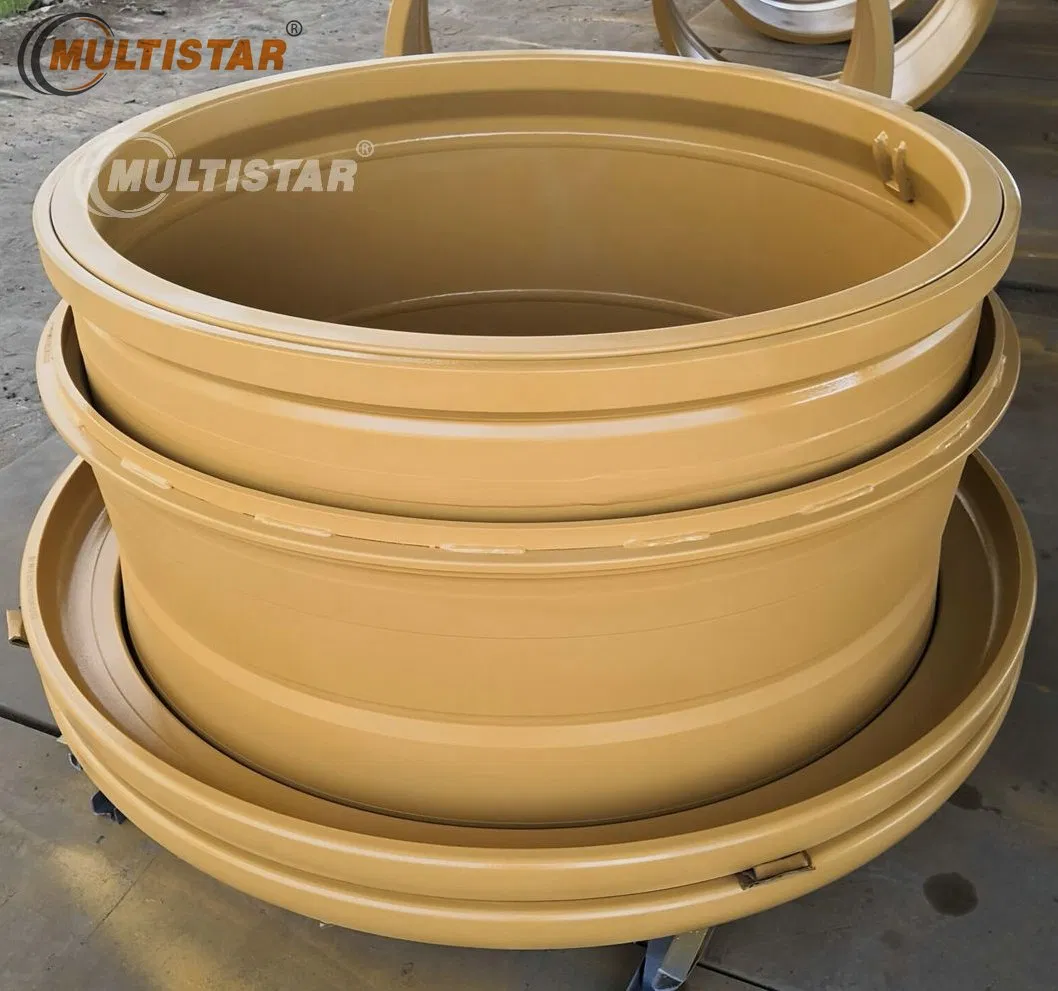

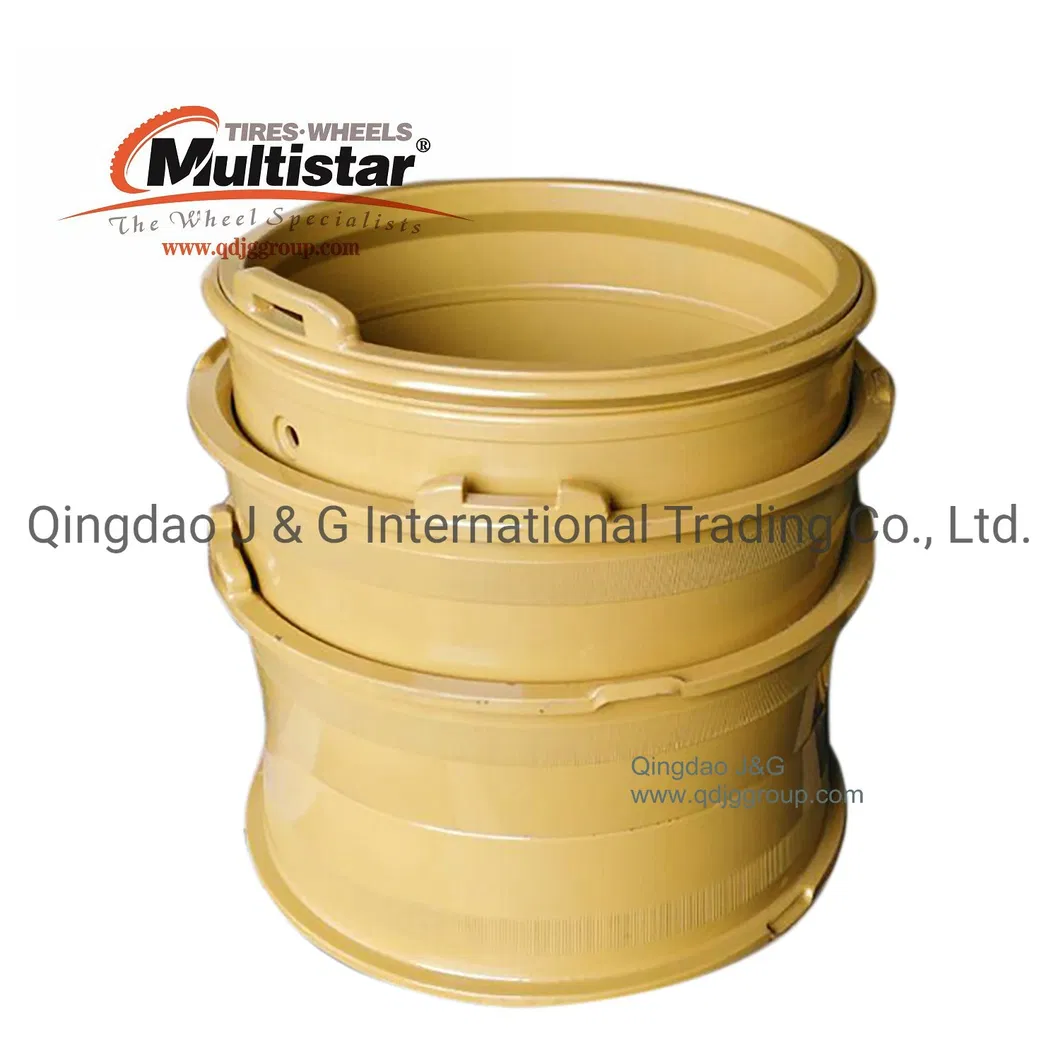

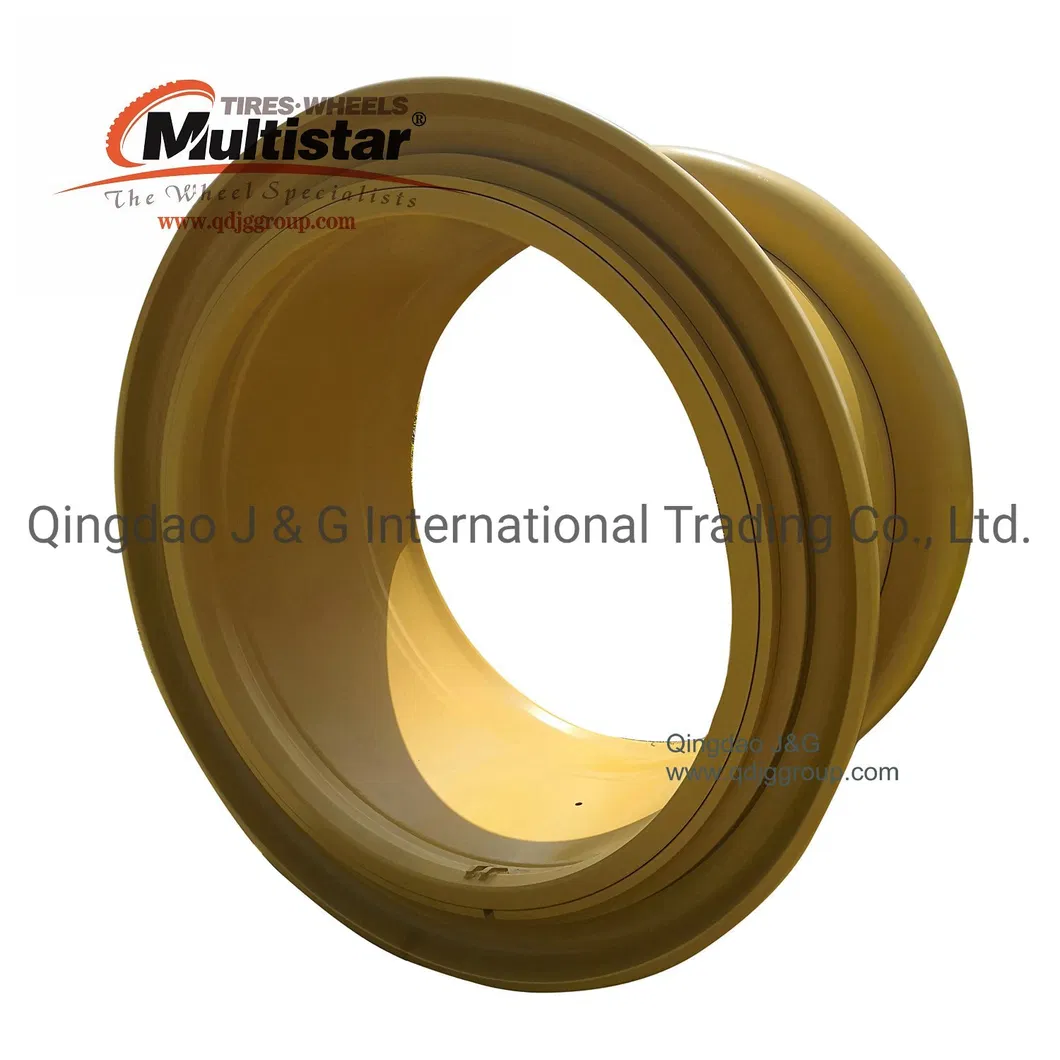

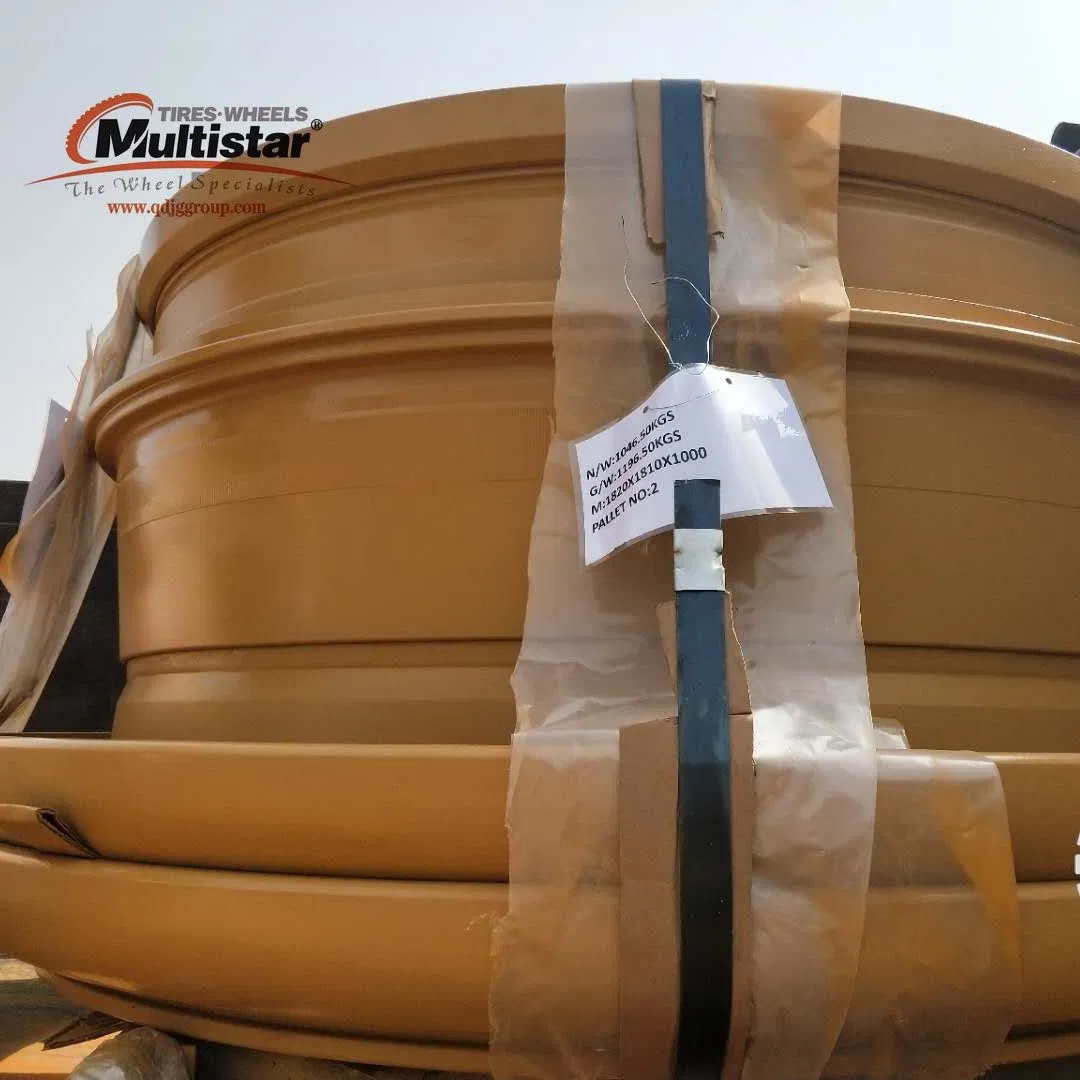

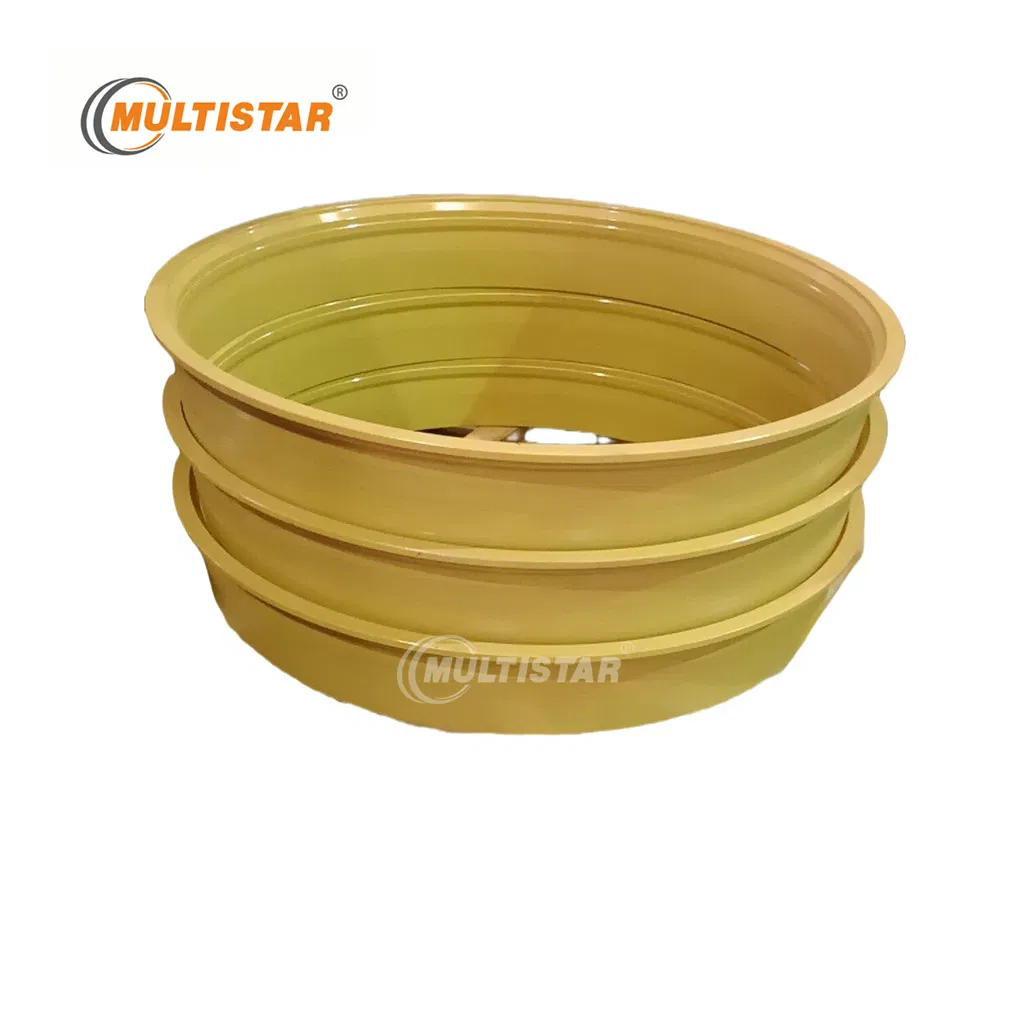

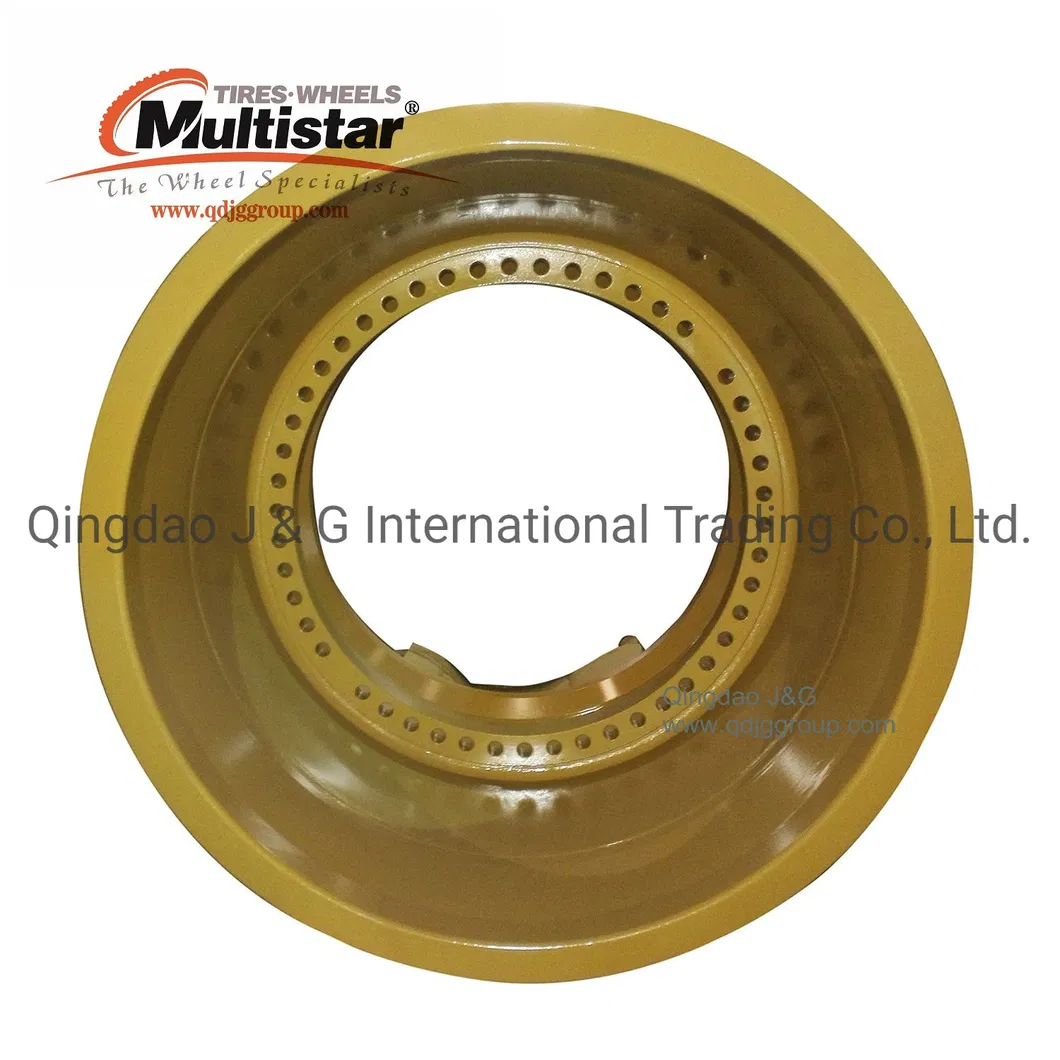

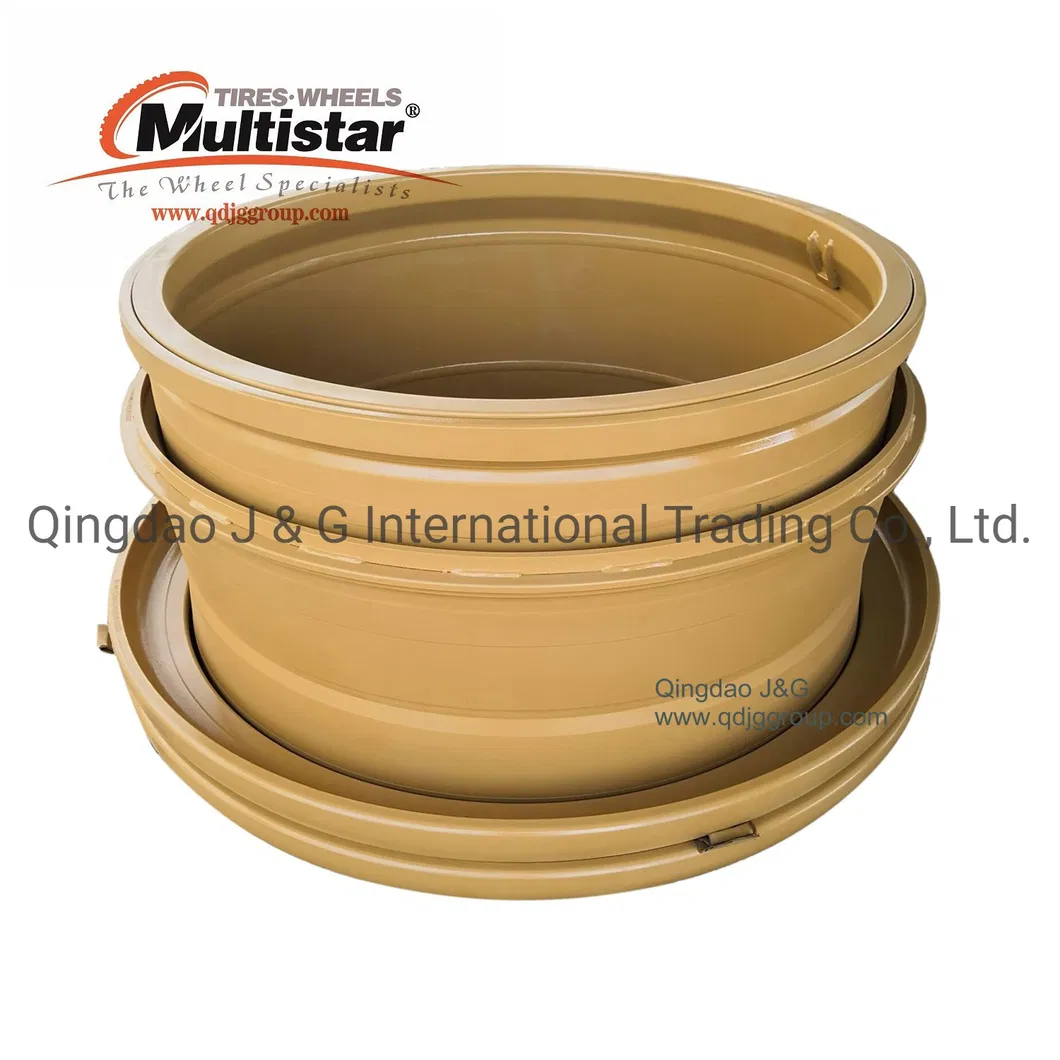

📷 Detailed Photos

🌟 Our Advantages

Extensive Inventory: 1000+ tyres and 3000+ rims in daily stock.
Design Library: 600+ wheel rim drawings available for original OTR equipment.
Proven Quality: Products meet DOT, CCC, and ISO standards with 15+ years of OE experience.
Global Reach: Exporting to over 70 countries with a focus on durability.
Customization: Special designs available for unique customer requirements.
Support: 24/7 after-sales service and mixed container shipping options.

🎪 Exhibition & Capability

❓ Frequently Asked Questions

What materials are used for the OTR wheel rims?

We use high-strength Q345D steel for gutter sections, back sections, and bead seat bands, while the locking components are made from 50Mn steel to ensure maximum durability.

Do your wheel rims meet international standards?

Yes, all our products are manufactured to meet ISO and AS4457.1-2207 standards, ensuring safety and performance in heavy-duty mining environments.

Can you provide rims for specific mining equipment?

Absolutely. We have a database of over 600 wheel rim drawings for original Off-the-Road equipment and can custom-manufacture rims to your exact specifications.

What kind of quality testing do the welds undergo?

Every weld bead is inspected using ultrasonic detection. For critical weld points, we also employ magnetic and X-ray testing to guarantee structural integrity.

How are the rims protected against corrosion?

Each wheel is cleaned by sandblasting and then coated with an epoxy resin electrophoretic primer or base coat, followed by a high-quality OEM-specification topcoat.

Is it possible to mix different sizes in one container?

Yes, we support small quantity orders and allow for different rim and tire sizes to be mixed into a single container for shipping efficiency.
